Case Construction Minotaur DL550 Compact Dozer Loader

Selected Case Construction D L550 Minotaur
Case Construction D L550 Minotaur

Product Description

Case Construction D L550 Bucket

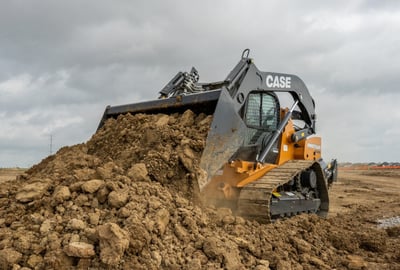

MEET THE DL550 DOZER LOADER

The CASE Minotaur DL550 helps you dominate the jobsite with true dozing performance, massive power and unrelenting hydraulics--all in a single platform that's compatible with hundreds of attachments. It all comes down to providing you ways to work smarter to increase productivity and improve your profitability. This exciting new product works very intuitively. It operates as a compact dozer when equipped with the fully chassis-integrated C-frame and six-way blade. That C-frame then can be dropped with a few easy steps, and then the machine serves as a loader with a 1.25-cubic-yard bucket — or it can be run with any of the hundreds of attachments equipment owners already have for their current loaders.

Specs

Additional Specs
Operator Station
Enclosed Cab
Power Type
Diesel
Engine
Bore X Stroke
3.9 x 4.3 in
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Gross HP
114 hp
No. Of Cylinders
4
Turbocharged Engine
Yes
Performance
Ground Pressure
6.7-9.8 psi
Lift Arm Path
Vertical lift
Travel Speed
Steel tracks: 3.1-5.9 mph, Rubber tracks: 5-8.7 mph
Operating Capacity (50% of Tip)
5500 lb
Tipping Load
11000 lb
Power Type
Diesel
Driveline
Track
Capacities
DEF
3.3 gal
Hydraulic Tank
10.7 gal
Fuel Tank
30.8 gal
Hydraulic System
Auxiliary Std Flow
24.2 gpm
Hydraulic System
Axial Piston
Transmission
Transmission
Hydrostatic (HST)
Make/Model
Model
Minotaur DL550
Type
Compact Dozer Loader
Product Dimensions & Weight
Length
159.10 in
Width
78.60 in
Height
84.60 in
Weight
18500.00 lbs
