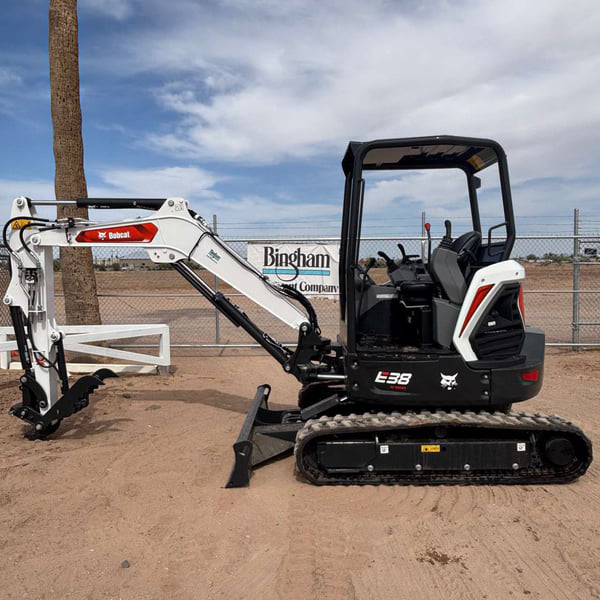

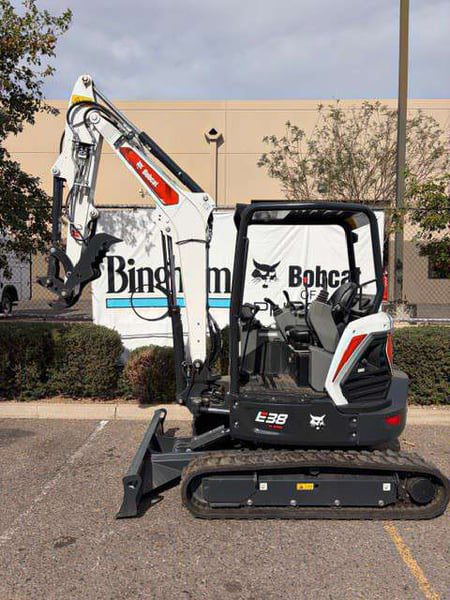

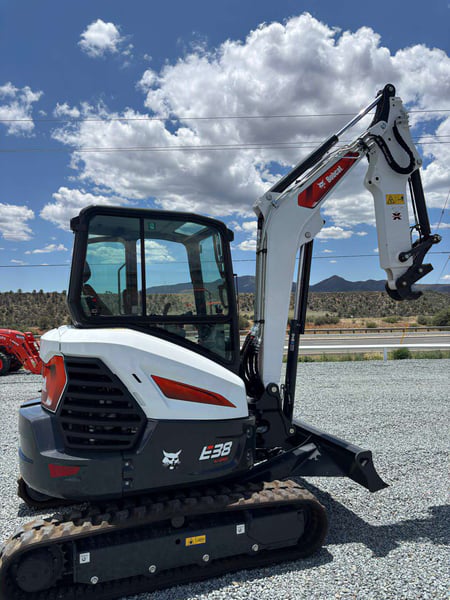

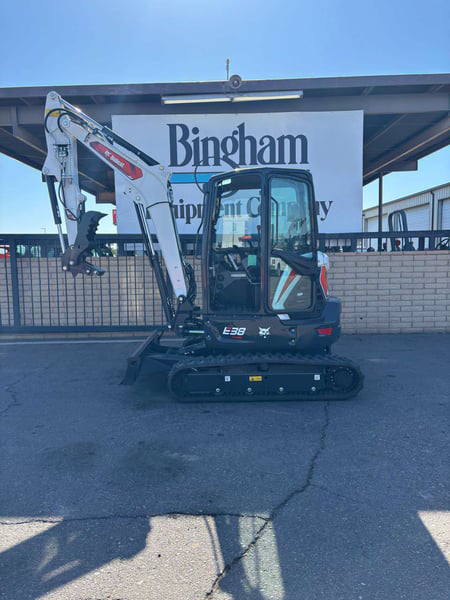

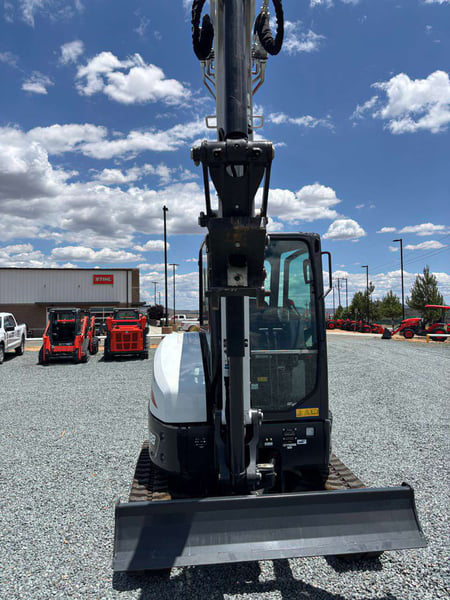

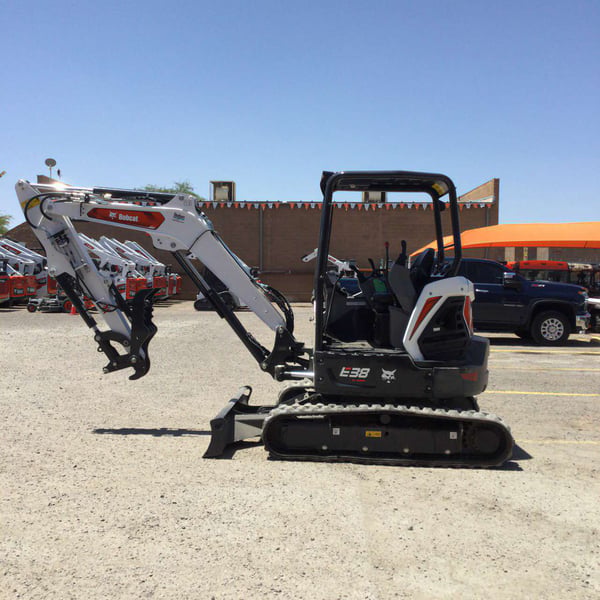

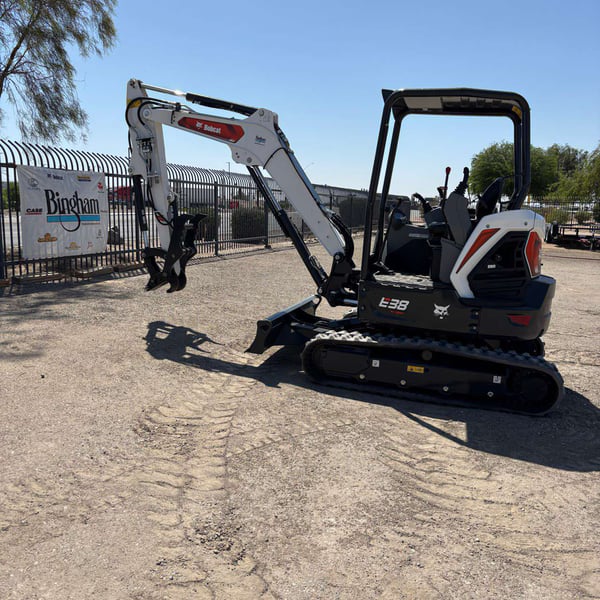

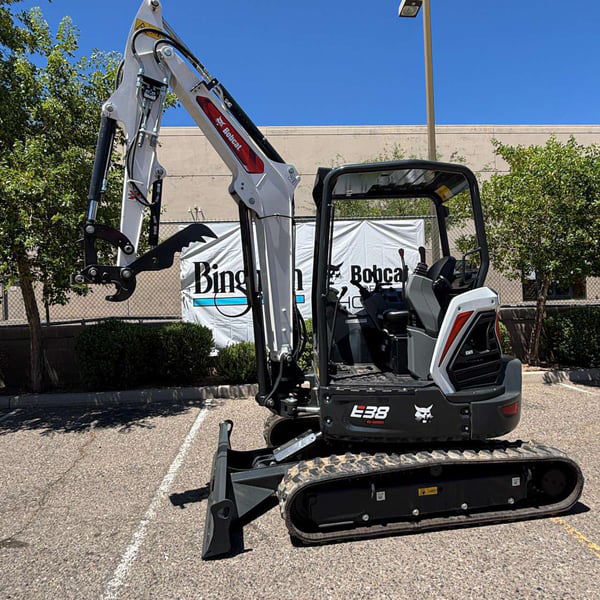

Bobcat E38 R2-Series Compact Excavator

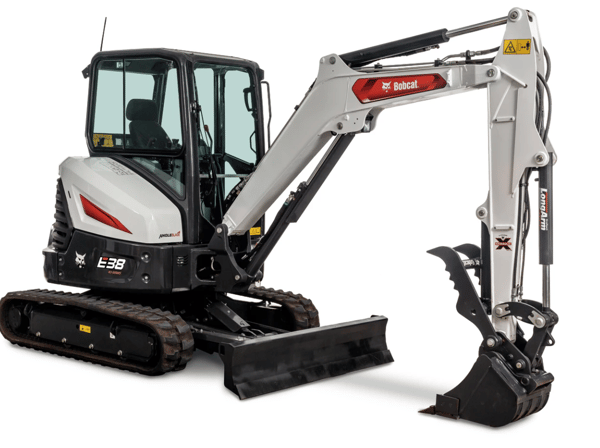

Bobcat E38 R series

Product Description

Bobcat E38.jpg

MEET THE E38 EXCAVATOR

The Bobcat E38 compact (mini) excavator, with its 33 hp engine brings strong performance, enhanced productivity and more usable power to the 3.8-ton size class. Zero tail swing provides unrestricted rotation, improved flexibility and minimized potential for damage to the machine and surrounding property. Choose from a range of options, including angle blade option, long arm option or clamp-ready extendable arm option.

PERFORMANCE BOOST

Bobcat E38 long arm.jpg
Option up for more versatility with performance-boosting features including a clamp-ready extendable arm, a long arm and an angle blade. Reach up to 30 in. more than the standard arm with the extendable arm option with less repositioning. Control the extension and retraction of the arm with a paddle on the right-hand joystick controls. When equipped with a clamp, the paddle on the left-hand joystick controls the clamp function.

ADVANCED EXCAVATOR HYDRAULICS

Bobcat E38 studio.jpg
Whether you’re traveling across a jobsite, backfilling, or digging, your excavator’s hydraulic system contributes to performance more than any other feature. When compared to other brands, advanced hydraulics on Bobcat excavators deliver the most horsepower in working range.

X-FRAME UNDERCARRIAGE

With better ground clearance, the X-frame undercarriage improves your performance in difficult conditions. Dirt and other materials easily pass through this undercarriage, making cleanup faster and leaving less debris on the trailers. The X-frame undercarriage design places drive motors within the width of the tracks, protecting the assembly and improving agility in soft conditions. The recessed motor covers eliminate potential damage and improve your uptime on the job.

Bobcat E38 undercarriage.webp

Specs

Additional Specs
Air Conditioning
Optional
Angle Blade
Optional
Cab Enclosure
Optional
Tail Swing Type
Zero
Engine
Emissions Tier (EPA)
Tier 4
Fuel Type
Diesel
Gross HP
33.2 hp
Turbocharged Engine
Yes
Performance
Arm Digging Force
4690 lbf
Boom Swing Angle Left/Right
Boom Swing Left: 75 degrees, Boom Swing Right: 55 degree
Bucket Digging Force
7284 lbf
Lift Capacity
3318 lb
Travel Speed
2.9 mph
Max Dig Depth
133 in
Max Dump Height
136.8 in
Driveline
Track
Dimensions & Weight
Height with Operator Cab
96.2 in
Operating Weight
7893 lb
Reach @ Maximum Height
204 in
Size Class
1-4 Ton
Weight Class
3.6 t
Capacities
Fuel Tank
13.7 gal
Hydraulic System
Auxiliary Std Flow
16.9 gal/min
Auxiliary Pressure
2987 psi
Make/Model
Model
E38
Type
Compact Excavator
Size Class
1-4 Ton
