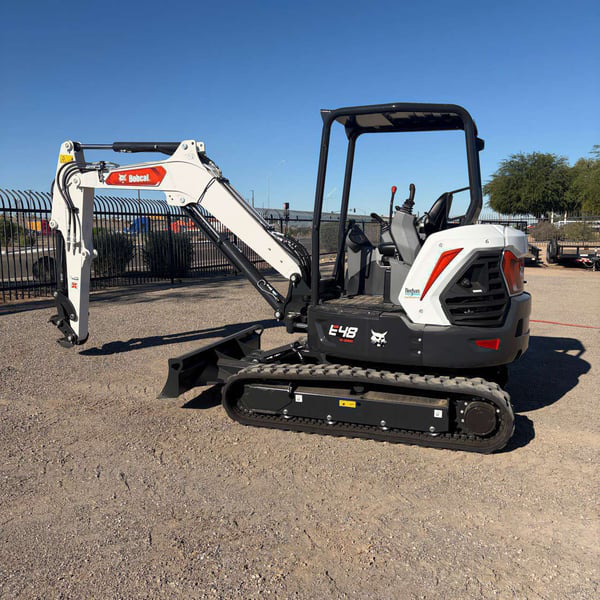

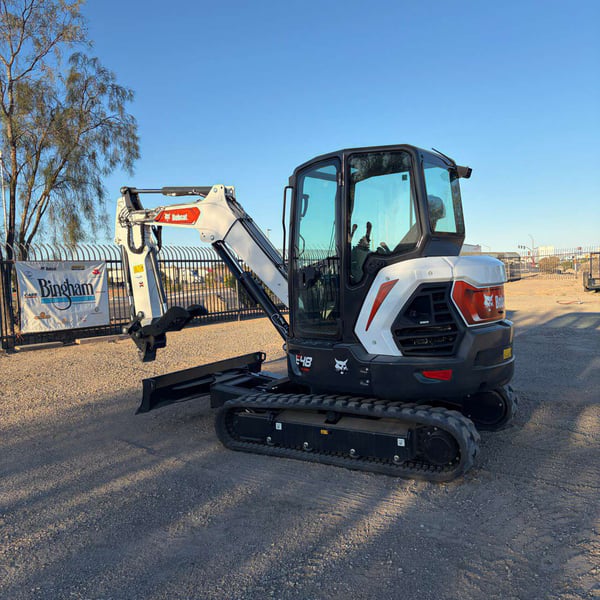

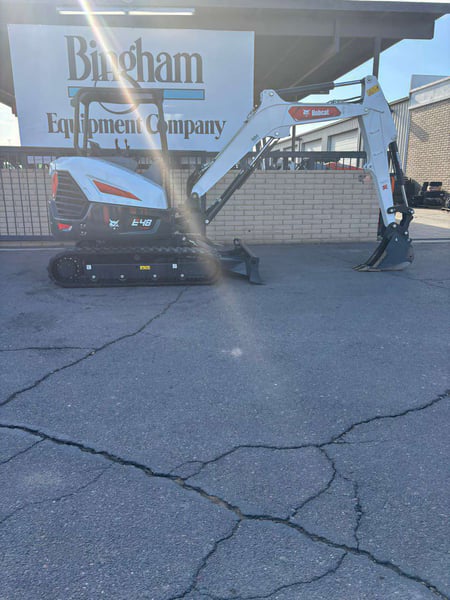

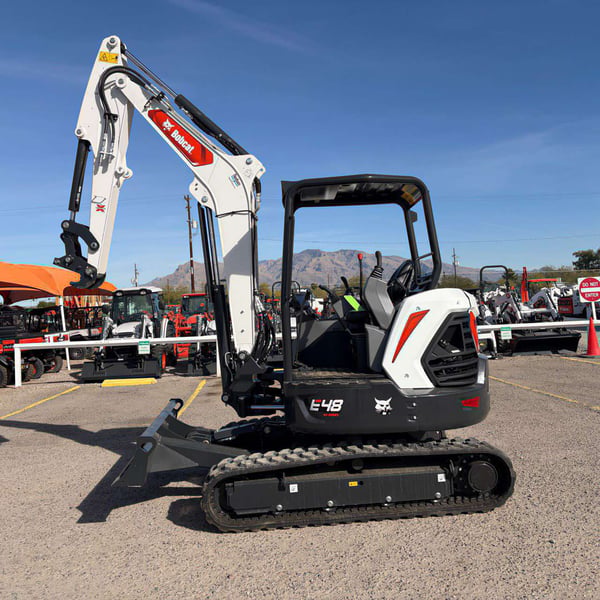

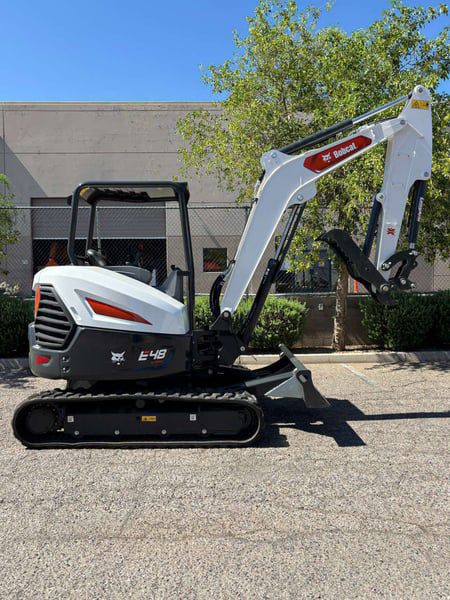

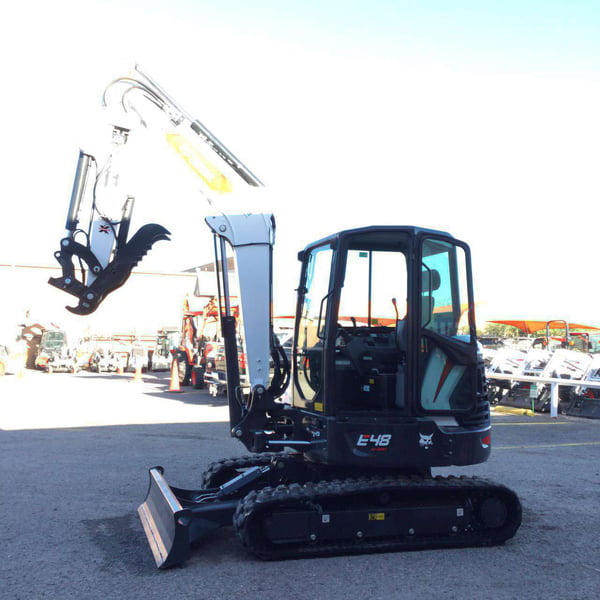

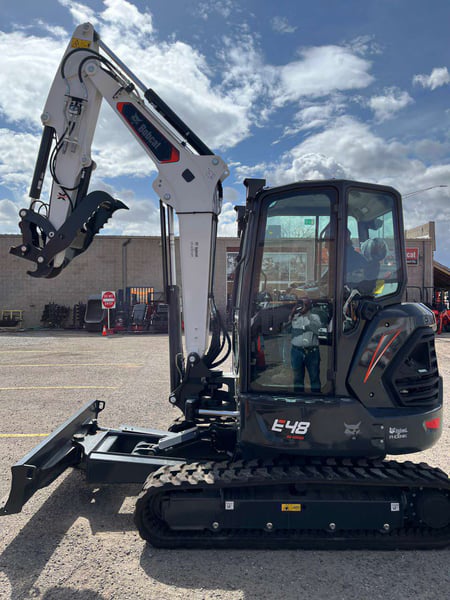

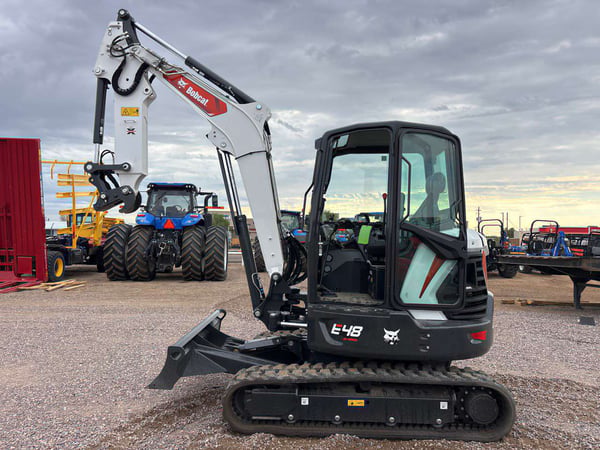

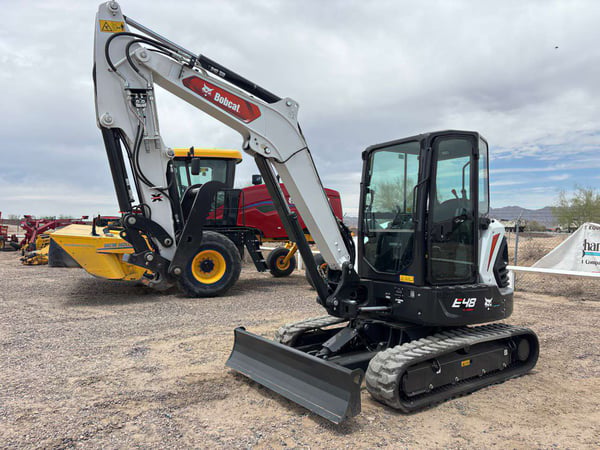

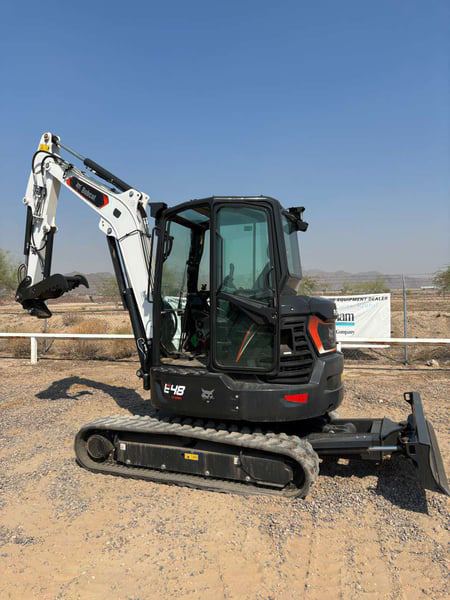

Bobcat E48 R2-Series Compact Excavator

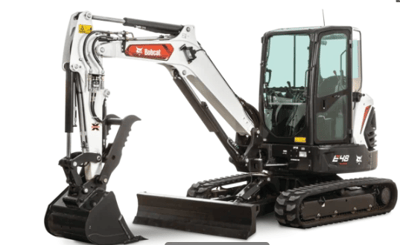

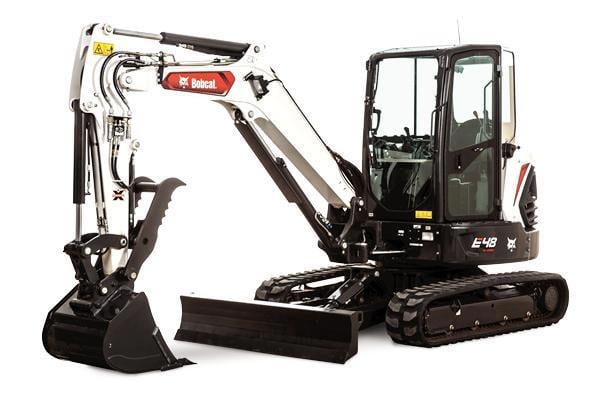

Bobcat E48 studio.jpg

Product Description

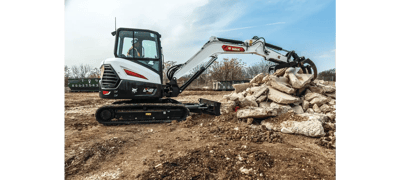

Bobcat E48 grapple.webp

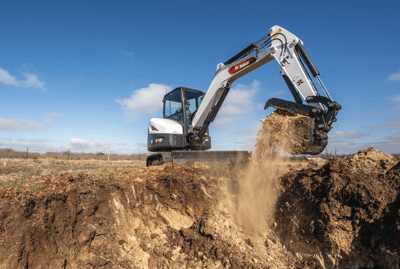

MEET THE E48 EXCAVATOR

The Bobcat E48 is a well-balanced machine, delivering the horsepower, precise controls and comfort for increased productivity and first-rate jobsite results. This conventional-tail-swing excavator comes with a slew of standard features designed to increase operator productivity while making the work easier and more comfortable. Standard features include low-effort joysticks, a dual-flange roller track system for enhanced over-the-side-digging, a 5-inch digital display, an integrated lift eye and password-protected keyless start.

FULL-FEATURE DISPLAY

Bobcat E48
The standard, easy-to-read cab display provides full-featured machine interaction and monitoring capabilities from right in the cab. You can use it to activate or deactivate auto idle. Diagnostics and detailed operation information can be accessed through the display, including monitoring, troubleshooting and error conditions. If there’s a problem with the system voltage, engine oil pressure, or other major functions, you’ll know.

PERFORMANCE BOOST

Bobcat E48 R Series
Option up for more versatility with performance-boosting features including a clamp-ready extendable arm or an angle blade. Reach up to 30 in. more than the standard arm with the extendable arm option with less repositioning. Dump spoil further away from the excavator and reach further back into the trench for cleanout purposes. Loading trucks is easier, too.

SERVICEABILITY

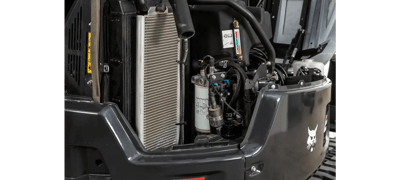

Larger fuel filters in R2-Series excavators provide better system protection and longer life before replacement. With more than double the media surface area, it has more holding capacity to capture impurities for longer intervals. The filter is also easier to change and includes a clear water bowl for easy monitoring and a sensor to notify you when draining is needed.

Bobcat E48 fuel filter.webp

Specs

Additional Specs
Air Conditioning
Optional
Angle Blade
Optional
Cab Enclosure
Optional
Tail Swing Type
Conventional
Engine
Emissions Tier (EPA)
Tier 4
Fuel Type
Diesel
Gross HP
42.6 hp
Turbocharged Engine
Yes
Performance
Arm Digging Force
5820 lbf
Boom Swing Angle Left/Right
Boom Swing Left: 75 degrees, Boom Swing Right: 50 degrees
Bucket Digging Force
9601 lbf
Lift Capacity
4921 lb
Travel Speed
3.3 mph
Max Dig Depth
124.5 in
Max Dump Height
150.6 in
Driveline
Track
Dimensions & Weight
Height with Operator Cab
99.1 in
Operating Weight
9830 lb
Reach @ Maximum Height
207.1 in
Weight Class
4.5 t
Capacities
Fuel Tank
19 gal
Hydraulic System
Auxiliary Std Flow
20 gal/min
Auxiliary Pressure
3045 psi
Make/Model
Model
E48
Type
Compact Excavator
Product Dimensions & Weight
Length
200.50 in
Width
72.80 in
Height
99.10 in
Weight
9830.00 lbs
