Case Construction CX300E Large Excavator

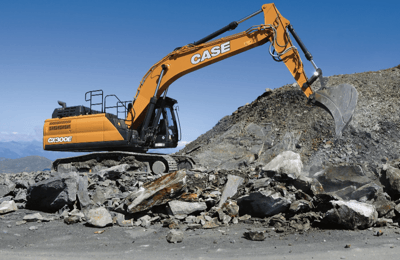

Case Construction CX300E Excavator.jpg

Product Description

Case Construction CX300E excavator.png

MEET THE CX300E EXCAVATOR

Big production meets big operator satisfaction. Fast cycles times, massive buckets, extremely responsive and smooth controls match with a big and comfortable work station to make you productive all day long. The CX300E builds on a wildly popular CASE excavator platform and delivers a new operator interface that improves productivity while also being extremely efficient. Match this heavy hitter with OEM-fit 2D and 3D machine control solutions, and the CX300E will help you load more trucks, work more efficiently and accurately, and enjoy every minute while you’re at it.

ENGINE EXCELLENCE

Case Construction E Series engine.png
The FPT engines in CASE E Series excavators deliver increased displacement, horsepower, and torque for enhanced power and responsiveness, with extended service intervals of 1,000 hours for engine oil and filters. Their innovative emissions system, combining DOC, SCR, and particulate matter catalyst technologies, ensures greater fuel efficiency and reliability without requiring after-treatment replacements or mechanical service over time.

FOUR WORKING MODES

Case Construction CX300E bucket.png
E Series excavators feature four working modes to optimize performance and fuel economy for various applications: Super Power (SP) for high-demand tasks, Power (P) with adjustable throttle settings, Lifting (L) for efficient object handling, and Eco (E) for up to 5% better fuel efficiency. Each mode is designed to match specific operational needs and maximize productivity.

Specs

Additional Specs
Air Conditioning
Standard
Cab Enclosure
Standard
Tail Swing
10' 10"
Operator Station
ROPS, Enclosed Cab
Engine
Displacement
411 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
FPT NEF6
Fuel Type
Ultra-low sulfur fuel, B5 biodiesel tolerant
Gross HP
259 hp
No. Of Cylinders
6
Turbocharged Engine
Yes
Performance
Arm Digging Force
25696-33047 lb
Bucket Digging Force
39342 lb
Ground Pressure
6.4 psi
Lift Capacity
See full spec sheet
Travel Speed
3.3 mph
Max Dig Depth
23' 4"
Max Dump Height
23' 3"
Max Reach
29' 10"
Driveline
Track
Dimensions & Weight
Ground Clearance
18 in
Height
131 in
Height with Operator Cab
123 in
Length
224 in
Operating Weight
67000 lb
Weight Class
33.5 t
Width
114 in
Capacities
DEF
22 gal
Hydraulic Tank
46 gal
Fuel Tank
126 gal
Hydraulic System
Hydraulic System
Open center
Auxiliary Pressure
570 psi
Transmission
Transmission
Hydraulic Drive
Make/Model
Model
CX300E
Type
Large Excavator
Product Dimensions & Weight
Length
224.00 in
Width
134.00 in
Height
131.00 in
Weight
67000.00 lbs
