New

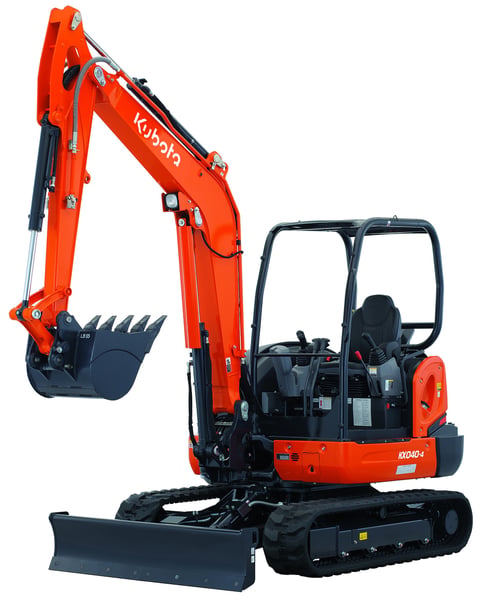

Kubota KX040-4 Compact Excavator
New
Kubota KX040-4 Compact Excavator
Manufacturers:
- 11' 2.7" max dig depth
- 40.4 engine horsepower
- 10,360 lb. operating weight
Product Description
MEET THE KX040-4 EXCAVATOR
Digging isn’t easy, but the Kubota KX040-4 optional 6-in-1 Blade will make it feel like it is. Even when heavily loaded, the KX040-4 won’t slow down, thanks to its powerful breakout force and 40.4 horses. The KX040-4 raises the standard in 4-ton excavator comfort with a spacious cab that rivals 5-ton excavators. The luxurious cab features a wider entrance, greater legroom and a deluxe seat. Operability is greatly enhanced with more easy-to-use features than ever before. Versatility is unmatched with the hydraulic 6-in-1 blade and angle blade models.
*Kubota is the world’s #1 selling compact excavator for 20 years. According to 2023 data from Off-Highway Research including all Kubota Group brand sales.
6 in 1 Blade
ANGLE BLADE OPTION
the side as the machine moves forward, eliminating the need for repetitive repositioning at right angles when backfilling trenches.
OPERATOR EXPERIENCE
- Wider cab entrance 1'10.4" with greater leg room, for easy entry and exit and comfortability in the cab
- User-friendly operator-facing digital panel that increases visibility and provides easy-to-read indicators and alerts
- Deluxe suspension seat, cup holder, wrist rest, easy-open front side window and air conditioning reducing strain and operator fatigue
- One-sided engine maintenance for easy access to vital components
Specs
| Additional Specs | |
|---|---|
| Operator Station | Open Cab, Enclosed Cab |
| Power Type | Diesel |
| Engine | |
|---|---|
| Displacement | 111.4 in³ |
| Emissions Tier (EPA) | Tier 4 |
| Engine Model | Kubota D1803-CR-TE4 |
| Gross HP | 40.4 hp |
| Performance | |
|---|---|
| Arm Digging Force | 4112 lbs |
| Bucket Digging Force | 9535 lbs |
| Ground Pressure | 4.53-5.10 psi |
| Travel Speed | High: 3.1 mph, Low: 1.7 mph |
| Power Type | Diesel |
| Driveline | Track |
| Dimensions & Weight | |
|---|---|
| Ground Clearance | 12.99 in |
| Height | 97.8 in |
| Operating Weight | 9195-10360 lbs |
| Size Class | 4-8 Ton |
| Capacities | |
|---|---|
| Fuel Tank | 16.9 gal |
| Hydraulic System | |
|---|---|
| Auxiliary Std Flow | 9.8-17.2 gpm |
| Make/Model | |
|---|---|
| Model | KX040-4 |
| Type | Compact Excavator |
| Size Class | 4-8 Ton |
| Product Dimensions & Weight | |
|---|---|
| Length | 200.20 in |
| Width | 66.90 in |
| Height | 97.80 in |
| Weight | 10360.00 lbs |
Related Products
Model Inventory

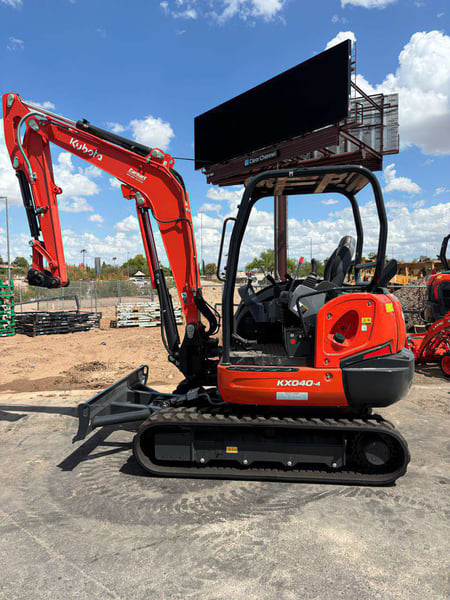

Stock #: 110239
Model: KX040-4
- Low hour machine
- 40.4 Horsepower
- Weight: 10,360 lbs
- Dig Depth: 11ft2.7in

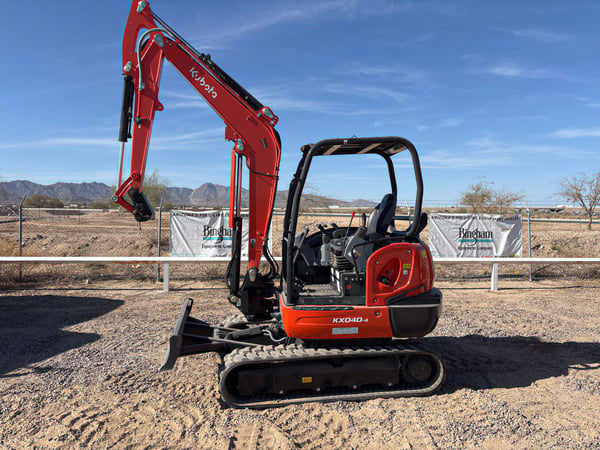

Stock #: 114327
Model: KX040-4
- Compact size; maximum versatility
- 40.4 Horsepower
- OEM Warranty until 05-01-2027

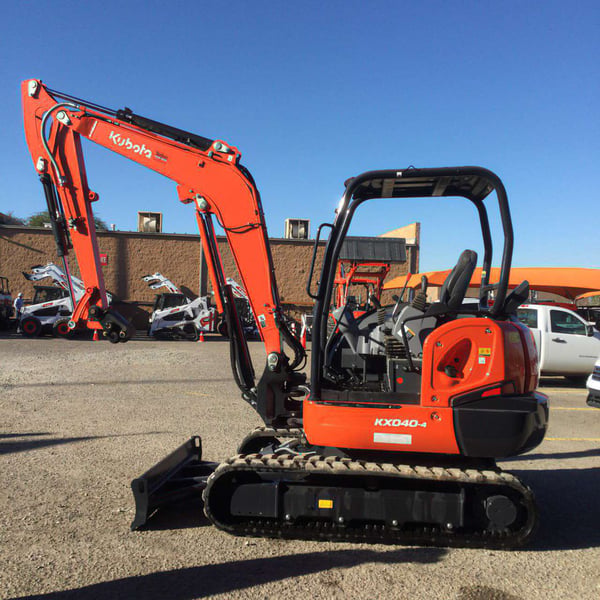

Stock #: 110240
Model: KX040-4
- Compact size; maximum versatility
- 40.4 Horsepower
- OEM Warranty until 10-21-2027

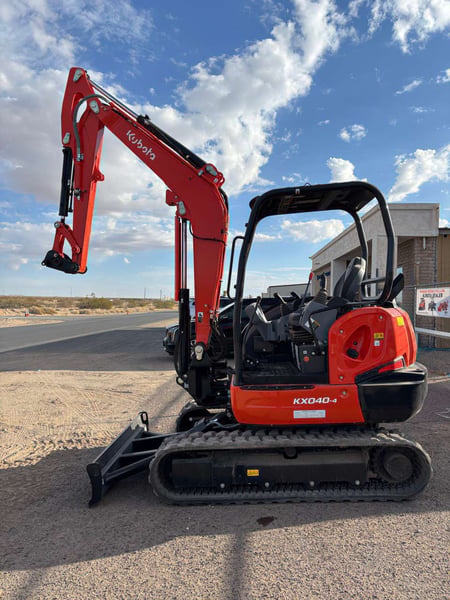

Stock #: 110252
Model: KX040-4
- Compact size; maximum versatility
- 40.4 Horsepower
- OEM Warranty until 06-30-2027

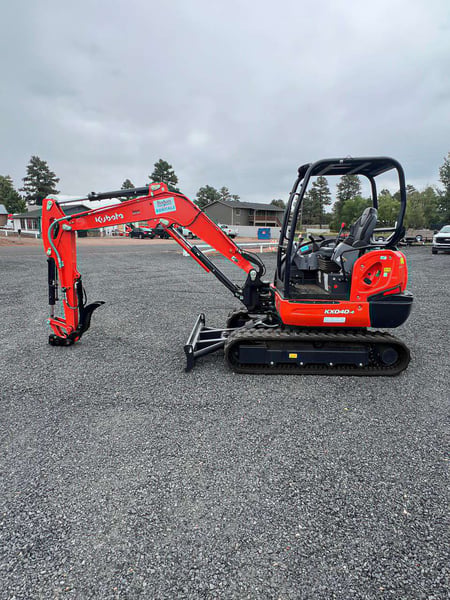

Stock #: 110236
Model: KX040-4
- Low hour machine; High value!
- Compact size; maximum versatility
- 40.4 Horsepower

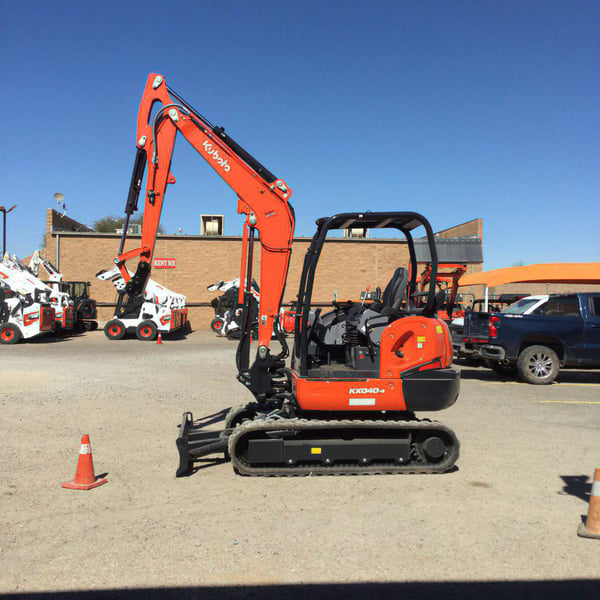

Stock #: 114341
