Case Construction 586H Forklift
New

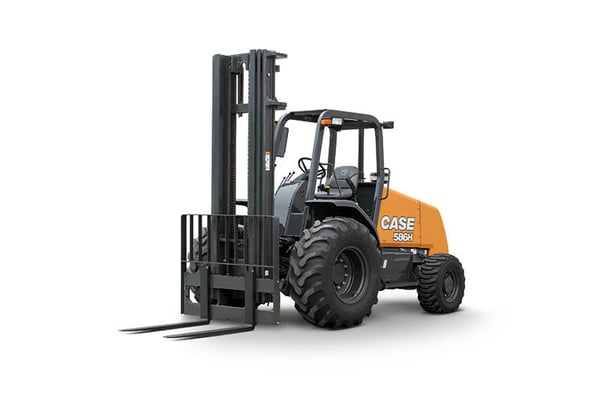

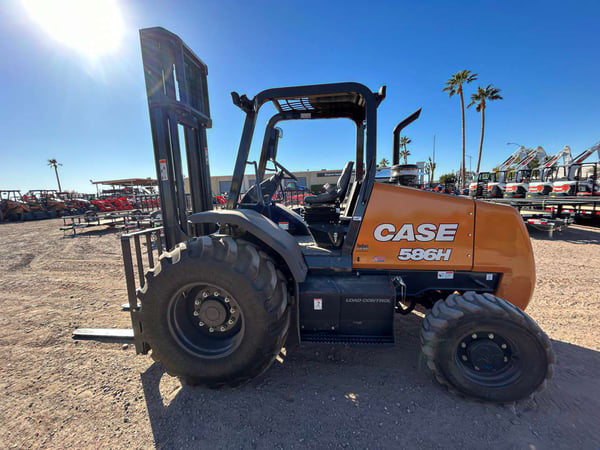

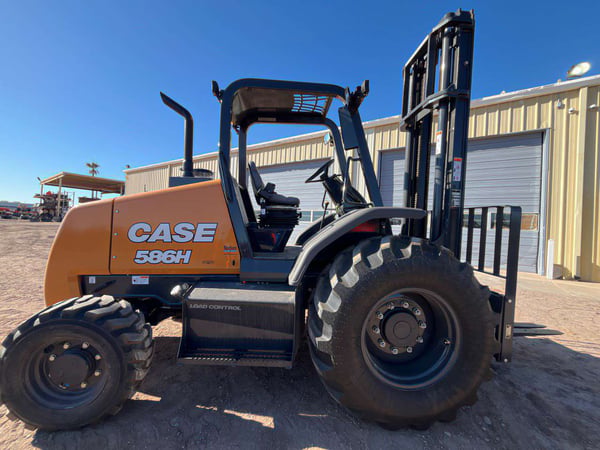

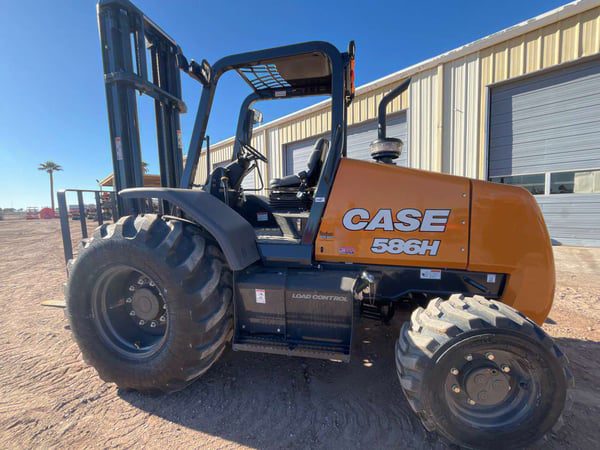

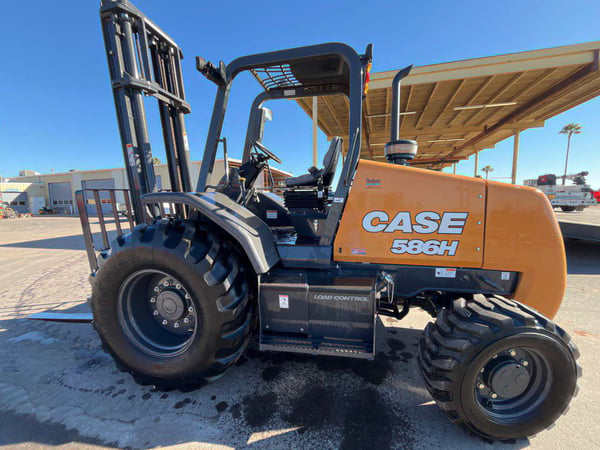

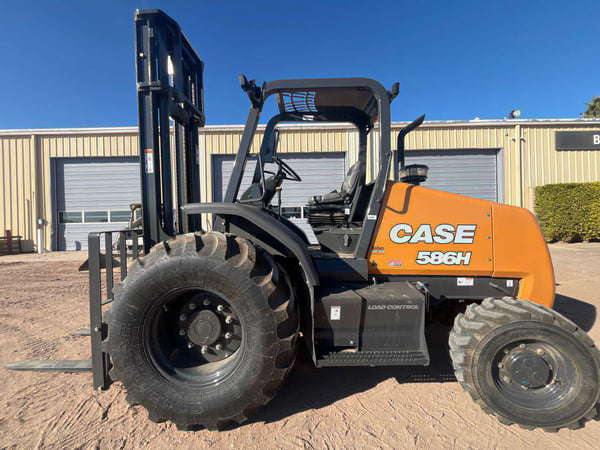

Case Construction 586H Forklift
Model: 586H
- 74 engine horsepower
- 6,000 lb. lift capacity
- 4F x 4R power shuttle transmission
Product Description

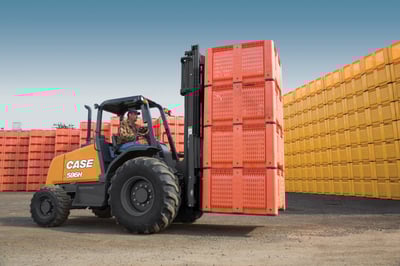

MEET THE 586H FORKLIFT
Pallets to pipes, the CASE 586H rough terrain forklift gets it done smoother, easier and faster. With intuitive controls like a push-button parking brake, eye-level AIC (Advanced Instrument Cluster), optional deluxe suspension seat and spacious operating platform – the 586H offers maximum comfort and ease of use. If low clearances are an issue, CASE offers freelift masts that allow you to raise the forks five feet off the ground prior to the mast protruding, keeping your overall travel height lower.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Optional |
| Operator Station | ROPS |
| Engine | |
|---|---|
| Displacement | 207 in³ |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Charged Air |
| Engine Model | FPT F5HFL463D |
| Fuel Injection | Direct high pressure common rail |
| Fuel Type | Diesel |
| Gross HP | 74 hp |
| No. Of Cylinders | 4 |
| Turbocharged Engine | Yes |
| Performance | |
|---|---|
| Travel Speed | 24 mph |
| Mast Type | 2 stage roller mast |
| Lift Speed | 107 ft/min |
| Lift Capacity to Full Height | 216 in |
| Dimensions & Weight | |
|---|---|
| Backward Mast Tilt | 15 degrees |
| Forward Mast Tilt | 45 degrees |
| Height | 127 in |
| Max Fork Height | 180 in |
| Operating Height | 216 in |
| Operating Weight | 13682 lb |
| Wheel base | 84-84.5 in |
| Width | 84 in |
| Capacities | |
|---|---|
| Hydraulic Tank | 18.5 gal |
| Fuel Tank | 31 gal |
| Transmission | |
|---|---|
| Transmission | Power Shuttle |
| Transmission Range | 4F/4R |
| Make/Model | |
|---|---|
| Model | 586H |
| Type | Forklift |
| Product Dimensions & Weight | |
|---|---|
| Length | 194.00 in |
| Width | 84.00 in |
| Height | 127.00 in |
| Weight | 14621.00 lbs |
