Kubota RA2076 Rotary Rake
New
Kubota RA2076 Rotary Rake
Model: RA2076
- 25' 7" Working Width
- 9' 2" Transportation Width
- FarmLine Rake
Product Description

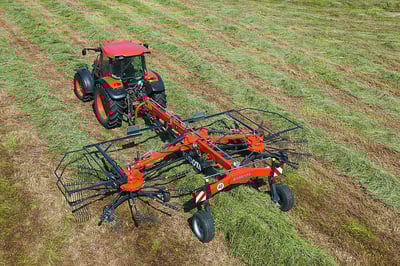

RA2076 ROTARY RAKE
Maneuver in tight fields and work consistent windrows with the Kubota RA2076! The Kubota FarmLine rake sports oil-immersed cam discs and guide rollers for reduced maintenance, and with up to 12 tangential tine arms, and four double tines per arm, you’re going to be covering larger swaths for faster dry times. The RA2076 sports a 23’ to 25’ 7” working width and thanks to rear wheel steering, you’ll easily make turns up to 80 degrees, maximizing your performance.
Specs
| Performance | |
|---|---|
| Capacity Theo. (Acres/h) | 20.8 |
| Swath Delivery | Center |
| Number of Rotors | 2 |
| Number of Double Tines/Arm | 4 |
| Number of Tine Arms Per Rotor | 2 x 12 |
| Height Adjustment | Mechanical |
| Dimensions & Weight | |
|---|---|
| Linkage Drawbar | N/A |
| Lower Links (2-pt.) | Standard |
| Parking Height ft. | 11' 4" |
| Pivoting 3-pt Headstock (cat.) | N/A |
| Rotor Diameter ft. | 11' |
| Tine Diameter in. | .35" |
| Tire Size | (Rotors) 16 x 6.5-8 |
| Transport Length ft. | 19' 4" |
| Transport Width ft. | 9' 2" |
| Working Width ft. | 25' 7" |
| Pickup | |
|---|---|
| Tine Diameter in. | .35" |
| Make/Model | |
|---|---|
| Model | RA2076 |
| Type | Rotary Rake |
| Product Dimensions & Weight | |
|---|---|
| Length | 232.00 in |
| Width | 307.00 in |
| Height | 136.00 in |
| Weight | 3615.00 lbs |
