New Holland Discbine 209 Side-Pull Disc Mower Conditioner
New
New Holland Discbine 209 Side-Pull Disc Mower Conditioner
Model: Discbine 209
- 7 round discs
- 9' 2" cutting width
- 65 minimum PTO horsepower required
Product Description

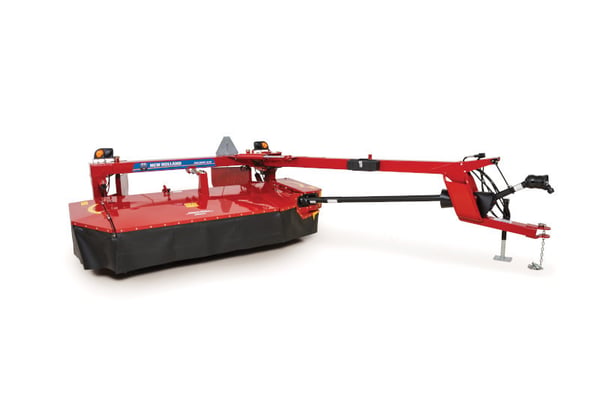

NEW HOLLAND DISCBINE 209
The New Holland Discbine 209 side-pull ensures clean cuts across uneven terrain by closely following ground contours, thanks to its independently suspended header. With a straightforward hitching system and the choice of conditioning systems like rubber chevrons or Leaning Edge flail tines, you can quickly harvest crops and produce high-value feed. Whether you're mowing at speeds up to 20 mph or handling varying conditions, this machine makes it easy to get the job done efficiently.
Specs
| Additional Specs | |
|---|---|
| Hitch | Side-pull, straight tongue |
| Hitch (CAT) | Drawbar with CV PTO |
| Minimum PTO HP Required | 65 hp |
| Performance | |
|---|---|
| PTO RPM | 540 rpm |
| Dimensions & Weight | |
|---|---|
| Tire Size | 9.5L x 14L-6PR |
| Working Width ft. | 14' 10" |
| Deck | |
|---|---|
| Cutting Height | 1.1-2.7 in |
| Disc Mower Conditioner Specs | |
|---|---|
| Cutterbar Operating Angle | 2-10 degree |
| Cutterbar Type | MowMax, Moduler with ShockPRO hubs |
| Drive Method | PTO drive with slip & overrunning clutch to bevel gearbox to LH end of header, vertical PTO shaft to cutterbar |
| Number Of Discs and Knives | 7/14 |
| Remotes | 2 |
| Make/Model | |
|---|---|
| Model | Discbine 209 |
| Type | Disc Mower Conditioner |
| Conditioning Systems | |
|---|---|
| Roll Type | Roll or leaning-edge flail tine |
| Product Dimensions & Weight | |
|---|---|
| Length | 217.00 in |
| Width | 178.00 in |
| Height | 68.00 in |
| Weight | 3740.00 lbs |
