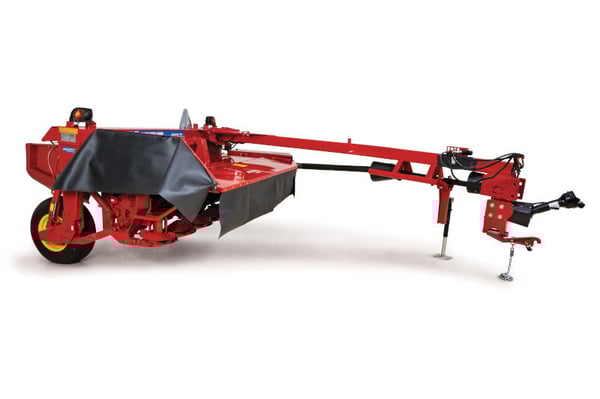

New Holland Discbine 210 Side-Pull Disc Mower Conditioner
New
New Holland Discbine 210 Side-Pull Disc Mower Conditioner
Model: Discbine 210
- 8 round discs
- 10' 4" cutting width
- 80 minimum PTO horsepower required
Product Description
NEW HOLLAND DISCBINE 210
The Discbine 210 harvests crop quickly and produce nutritious, high-value feed using your choice of conditioning systems. Choose from gentle rubber chevron-intermeshing, LeaningEdge flail tines for fast grass hay drying, or steel chevron-intermeshing rolls. MowMax disc cutterbar stands apart from many others because it is designed to resist damage and minimize downtime. Utilizing sealed disc gearboxes, each with an independent oil sump, it’s impossible for a loose gear tooth to damage adjacent modules.
Specs
| Additional Specs | |
|---|---|
| Hitch | Side-pull, curved tongue |
| Hitch (CAT) | Standard: Drawbar with CV PTO, Swivel with drawbar adapter, Two-point |
| Minimum PTO HP Required | 80 hp |
| Performance | |
|---|---|
| PTO RPM | 540 rpm |
| Dimensions & Weight | |
|---|---|
| Tire Size | Standard hitch and flail: 9.5L x 14L-6PR, Swivel hitch and roll: 11L x 15-6PR |
| Working Width ft. | 10' 4" |
| Deck | |
|---|---|
| Cutting Height | Flail tine: 1.1-2.7 in, Roll:.95-2.4 in |
| Disc Mower Conditioner Specs | |
|---|---|
| Cutterbar Operating Angle | 2-10 degree |
| Cutterbar Type | MowMax, Moduler with ShockPRO hubs |
| Drive Method | PTO drive with slip & overrunning clutch to bevel gearbox to LH end of header, vertical PTO shaft to cutterbar |
| Number Of Discs and Knives | 8/16 |
| Remotes | 2 |
| Make/Model | |
|---|---|
| Model | Discbine 210 |
| Type | Disc Mower Conditioner |
| Conditioning Systems | |
|---|---|
| Roll Type | Roll or leaning-edge flail tine |
| Product Dimensions & Weight | |
|---|---|
| Length | 217.00 in |
| Width | 135.00 in |
| Height | 63.00 in |
| Weight | 4160.00 lbs |
