New Holland Stackcruiser 103 Bale Wagon

N H S C103

Product Description

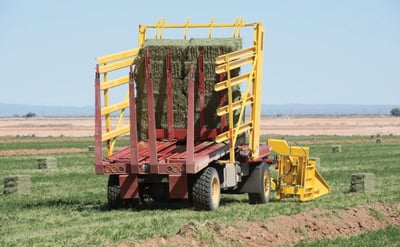

New Holland Stackcruiser 103.jpg

NEW HOLLAND STACKCRUISER 103

The Stackcruiser 103 self-propelled bale wagon is a versatile powerhouse, effortlessly picking up both small and large bales and creating stacks three bales wide. It accommodates 14” x 18” or 16” x 18” bales with an impressive 82-bale capacity, and with the optional Mil-Stak attachment, it can handle even the largest 3' x 3' or 3' x 4' bales. Enjoy stacking in total comfort and control from the spacious, iso-mounted cab, offering ample legroom, a tilt steering column, right-hand controls, and complete climate control for a smooth and quiet ride.

Specs

Engine
Aspiriation
Turbocharged & after cooled
Dimensions & Weight
Gross Vehicle Weight
14969 lbs
Length
31.25 ft
Overall Height
176 in (447 cm)
Capacities
DEF
12.4 gal (47 L)
Fuel Tank
69 gal (261 L)
Hydraulic System
Hydraulic System
Dual: open center and closed center
Transmission
Transmission
Automatic
Transmission Range
5-Speed
Bale Wagon Specs
Bale Capacity
16 in x 18 in x 44-48 in: 107, 3-Tie bales (all sizes) x 46 in: 82, 3 ft x 3 ft x 8 ft & 3 ft x 4 ft x 8 ft: 10-15 with Mil-Stak attachment
Bale Sizes capable - Height x Width x Length (in. (cm))
16 x 18 x 44-48 (41 x 46 x 112-122) 2-tie bales, 15 x 22 x 44-48 (38 x 56 x 112-122), 15 x 23 x 44-48 (38 x 58 x 112-122), 16 x 22 x 44-48 (41 x 56 x 112-122), 16 x 23 x 44-48 (41 x 58 x 112-122) three-tie bales
Bale Weight
90-145 lbs
Loader Raised, Stabilizers at Widest Position (in. (cm))
127 (322)
Loader Raised, Stabilizers Off (in. (cm))
109 (276)
Maximum Power at Rated Speed (hp (kW))
190 (142)
Number of cylinders / displacement (cu. in. (L))
6 / 408 (6.7)
Optimum Length of Bale for Best Tie-Tier (in. (cm))
46 (117) for all bale sizes
Rear Axle
10 (25) @ diff. housing, 6 (15) at leaf spring U-bolts
Make/Model
Model
Stackcruiser 103
Type
Bale Wagon
Product Dimensions & Weight
Length
375.00 in
Width
146.00 in
Height
176.00 in
Weight
14969.00 lbs
