Bobcat L23 Small Articulated Loader

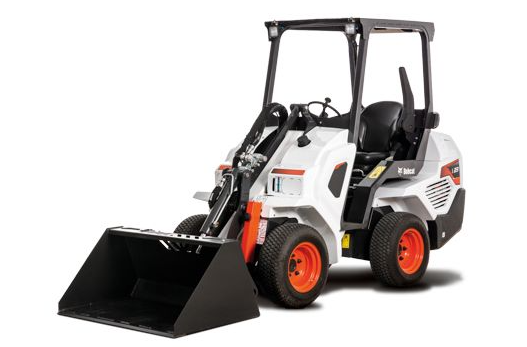

Bobcat L23

Product Description

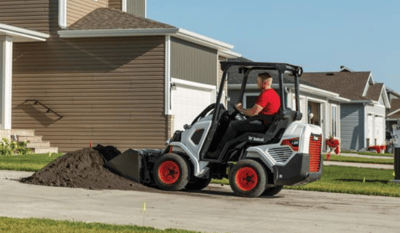

Bobcat L23 bucket.png

MEET THE L23 ARTICULATED LOADER

The Bobcat L23 Compact Wheel Loader is equipped with a 25-horsepower engine that ensures high torque and fuel efficiency. It features articulated steering for enhanced maneuverability, a lift capacity of 1,395 pounds, and a lift height of up to 7.85 feet. The L23 also includes a 0.6 cubic yard bucket capacity and a comfortable operator station with intuitive controls. This makes it an ideal choice for construction, landscaping, and agricultural tasks, providing both power and precision.

ATTACHMENT CONVENIENCE

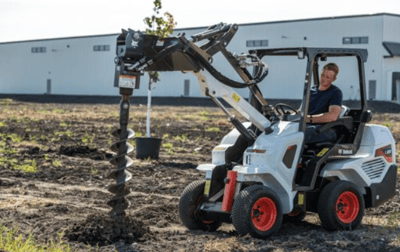

Bobcat L23 auger.png
Select Bobcat mini track loader, compact track loader and skid-steer loader attachments will fit on these machines because the L23 has the Bob-Tach attachment mounting system. So you may not need to buy new attachments. You can even add an optional Power Bob-Tach system.

LESS GROUND DISTURBANCE

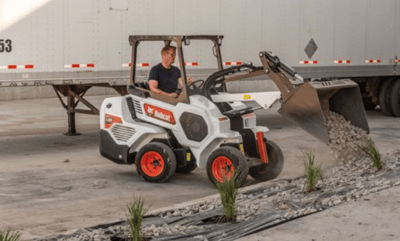

Bobcat L23 turf.png
These small articulated loaders perform efficiently on both asphalt and grass, moving quickly on hard surfaces and offering high-traction mode for icy conditions. Designed to prevent damage to turf, they feature a turf-safe mode that stops wheel scrubbing during turns or while hauling loads. Less ground disturbance than SSL, CTL or MTL.

Specs

Additional Specs
Cab Enclosure
Optional
Engine
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Fuel Type
Diesel
Gross HP
24.8 hp
Turbocharged Engine
No
Performance
Articulation Angle
43°
Rated Operating Capacity (ISO)
1395 lb
Travel Speed
8.2 mph
Tipping Load
2789 lb
Max Reach
16.8 in
Driveline
4WD
Dimensions & Weight
Ground Clearance
5.5 in
Height with Operator Cab
78.1 in
Length
122.4 in
Length without Attachment
93.2 in
Operating Weight
3790 lb
Rated Operating Capacity Art.
1159 lb
Rollback Angle
32°
Tipping Load Art.
2317 lb
Tire Size
23 x 8.5-12
Turning Radius Outside
100.9 in
Turning Radius
77.2 in
Wheel base
47.2 in
Width (with bucket)
44 in
Width
43.2 in
Capacities
Fuel Tank
9.6 gal
Transmission
Transmission
Hydrostatic (HST)
Make/Model
Model
L23
Type
Articulated Loader
