Bobcat T770 Compact Track Loader
New
Bobcat T770 Compact Track Loader
Manufacturers:
CLASSIC
- Up to 10.7-mph
- 92 engine horsepower
- 10,515 lbs. rated operating weight
Product Description
MEET THE T770 TRACK LOADER
Built for demanding applications that require maximum lifting capability and serious hydraulic performance, the Bobcat T770 Compact Track Loader delivers the strength and durability crews need to stay productive on challenging jobsites. Its 92-horsepower engine, powerful breakout forces, and fast cycle times make it ideal for heavy material handling, demolition, land clearing, construction, and attachment-driven work. Despite its impressive performance, the T770 maintains excellent maneuverability and a lighter operating weight than many comparable machines in its class for easier transport and jobsite mobility. Designed with proven Bobcat engineering and simplified operation, the T770 provides dependable everyday performance without unnecessary complexity.
VERTICAL LIFT PATH
STATE-OF-THE-ART ENGINE
MAXCONTROL OPTION
All loaders that are equipped with Selectable Joystick Control (SJC) can be operated by a remote-control system (MaxControl), so you can operate the machine without an operator in the cab using an app on your phone. This system functions as an extra set of hands when help is limited, allowing two-person jobs to be handled by a single operator.
Specs
| Additional Specs | |
|---|---|
| ACS (Switchable Controls) | Optional |
| Air Conditioning | Optional |
| Cab Enclosure | Optional |
| Cab Heater | Optional |
| Operator Station | Open Cab |
| Power Type | Diesel |
| Engine | |
|---|---|
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Shutdown | Standard |
| Gross HP | 92 hp |
| Turbocharged Engine | Yes |
| Performance | |
|---|---|
| Ground Pressure | 4.2 psi |
| Rated Operating Capacity (ISO) | 3475 lb |
| Travel Speed | 6.6 mph |
| Tipping Load | 9929 lb |
| Power Type | Diesel |
| Driveline | Track |
| Dimensions & Weight | |
|---|---|
| Height to Bucket Hinge Pin | 132 in |
| Length with Standard Bucket | 141.6 in |
| Length without Attachment | 113.3 in |
| Length of Track on Ground | 81.7 in |
| Operating Weight | 10515 lb |
| Reach @ Maximum Height | 34.9 in |
| Track Width | 17.7 in |
| Turning Radius | 87.6 in |
| Capacities | |
|---|---|
| Fuel Tank | 43.8 gal |
| Hydraulic System | |
|---|---|
| High Flow Option | Optional |
| Auxiliary Hydraulics | Standard |
| Auxiliary Std Flow | 23 gal/min |
| Auxiliary High Flow | 36.6 gal/min |
| System Relief @ Quick Couplers | 3450 psi |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| Travel Speed (2-speed option) | 10.7 mph |
| Make/Model | |
|---|---|
| Model | T770 |
| Type | Track Loader |
| Product Dimensions & Weight | |
|---|---|
| Length | 113.30 in |
| Width | 78.00 in |
| Height | 81.30 in |
| Weight | 10515.00 lbs |
Related Products
Model Inventory

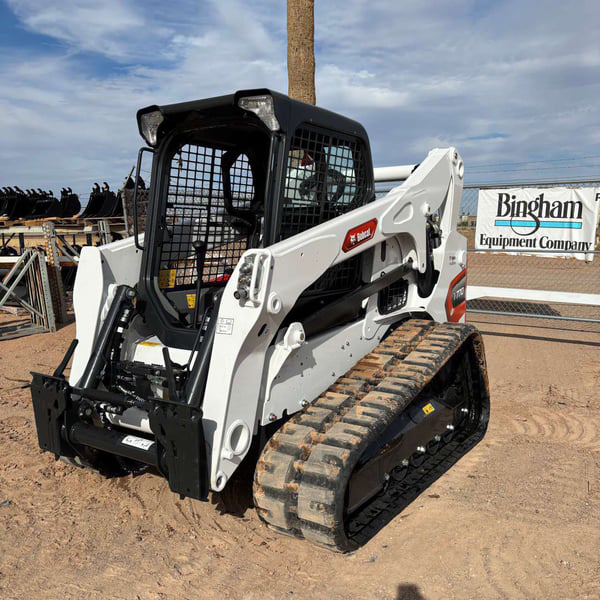

Stock #: 120671
Model: T770
- 92.0 Horsepower
- OEM Warranty until 07-29-2027

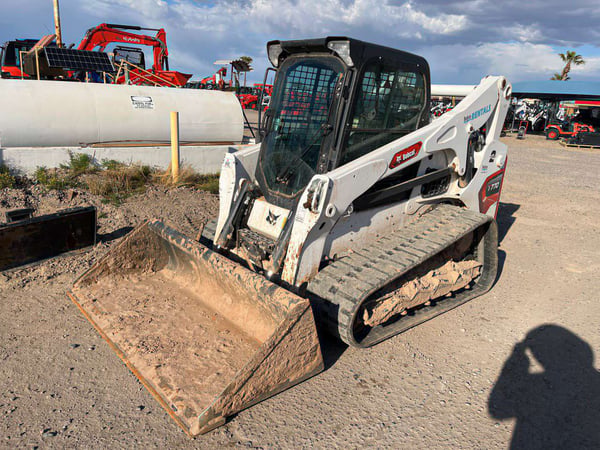

Stock #: 105202
Model: T770
- 92.0 Horsepower
- Extended Warranty until 02-23-2027

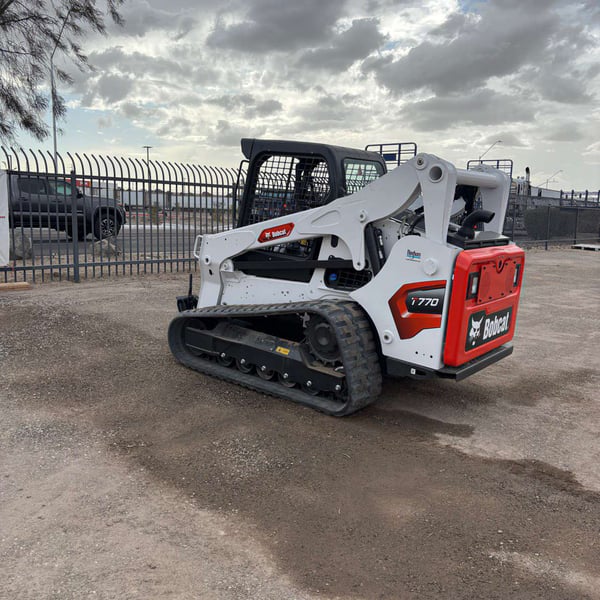

Stock #: 120645
Model: T770
- 92.0 Horsepower
- OEM Warranty until 09-09-2027

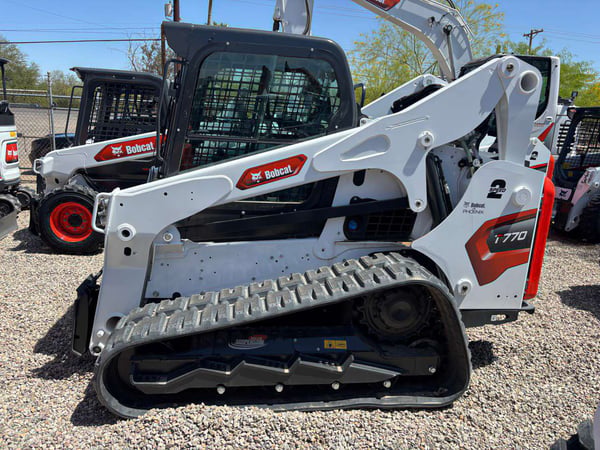

Stock #: 118971
Model: T770
- Enclosed Cab with cold A/C
- 92.0 Horsepower
- OEM Warranty until 08-28-2027

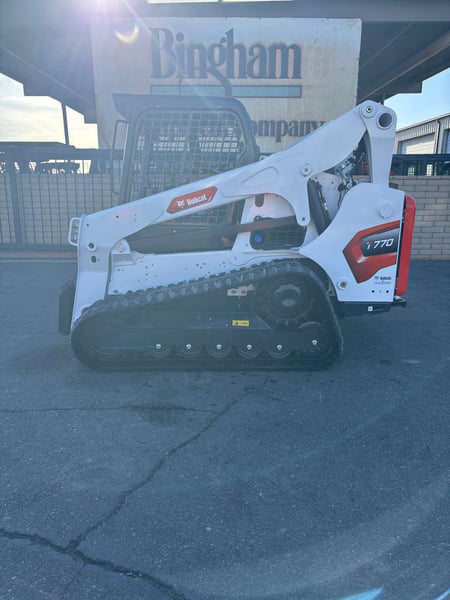

Stock #: 120672
Model: T770
- 92.0 Horsepower
- OEM Warranty until 09-29-2027

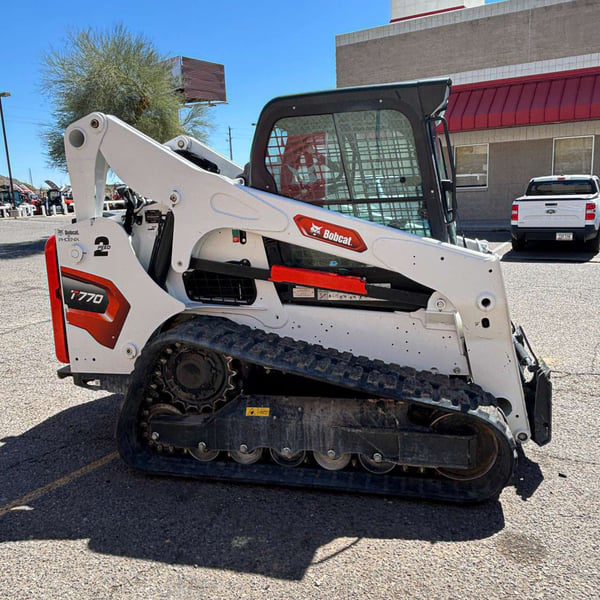

Stock #: 118407
Model: T770
- Low hour machine; High value!
- Enclosed Cab with cold A/C
- 92.0 Horsepower

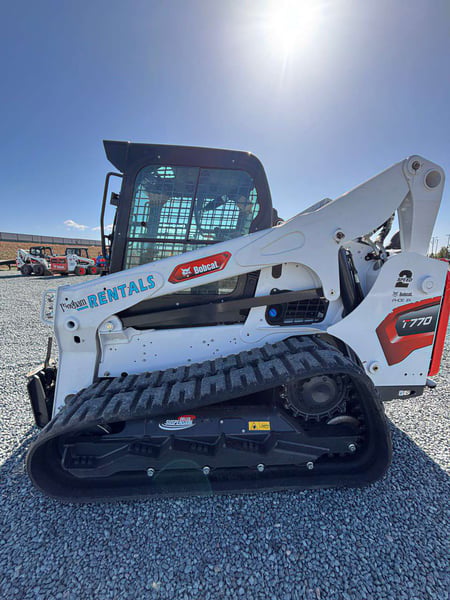

Stock #: 118972
Model: T770
- Enclosed Cab with cold A/C
- 92.0 Horsepower
- OEM Warranty until 02-17-2027
On Lot: Bobcat of Phoenix

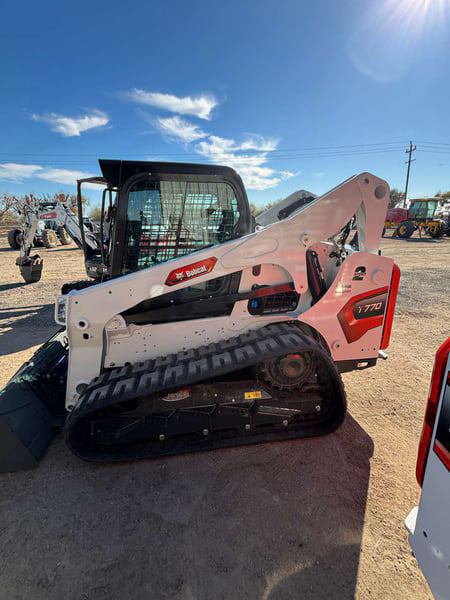

Stock #: 118970
Model: T770
- Enclosed Cab with cold A/C
- 92.0 Horsepower
- OEM Warranty until 12-28-2027

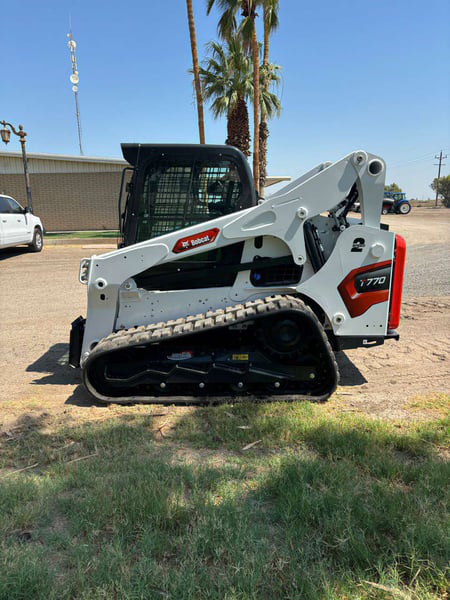

Stock #: 112706
Model: T770
- Low hour machine; High value!
- Enclosed Cab with cold A/C
- 92.0 Horsepower

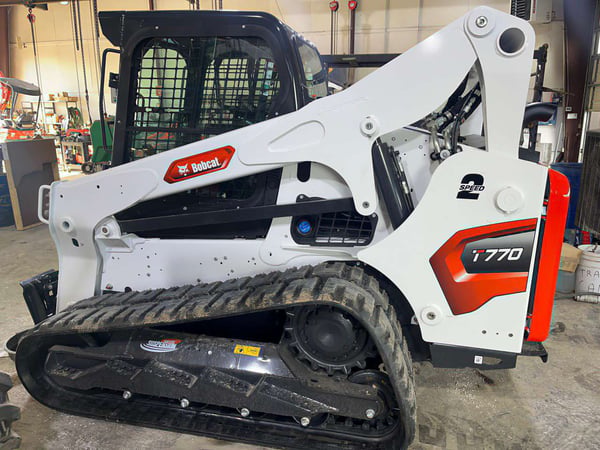

Stock #: 111092
Model: T770
- Enclosed Cab with cold A/C
- 92.0 Horsepower
- Extended Warranty until 12-25-2028

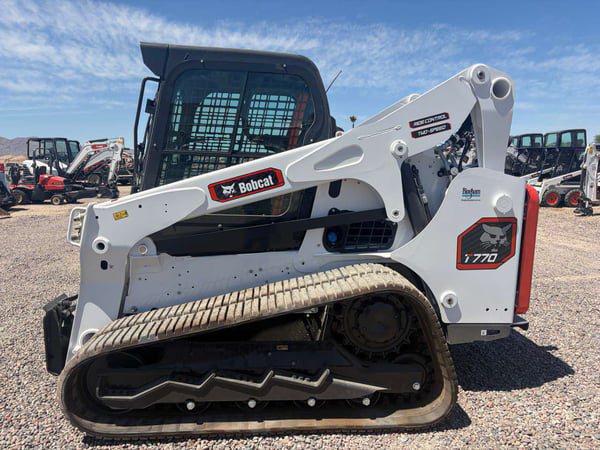

Stock #: 130769
Model: T770
- 92.0 Horsepower
- OEM Warranty
Stock #: 130768
Model: T770
- 92.0 Horsepower
- OEM Warranty
