New

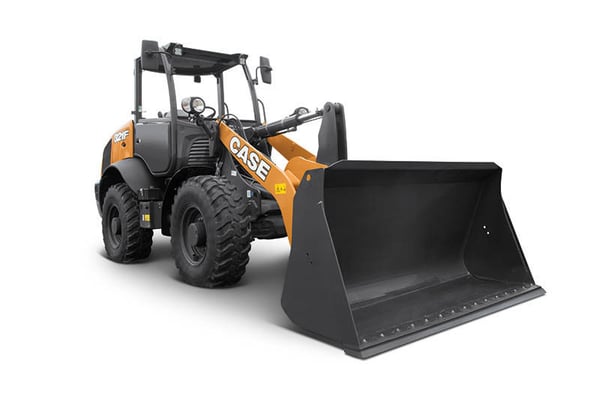

Case Construction 21F Compact Wheel Loader
New
Case Construction 21F Compact Wheel Loader
Manufacturers:
- Up to 12.4-mph
- 58 engine horsepower
- 11,272 lb. operating weight
Product Description
MEET THE 21F WHEEL LOADER
At only 8 ft. 9 in. (2.46 m) high, the 21F offers a more compact design that provides greater stability and leverage as well as a higher bucket dump height than previous generations. For greater versatility, it’s available with Z-Bar or Tool Carrier / Parallel Lift linkage and is compatible with skid steer attachments. This compact-yet-powerful model also meets emissions regulations with a maintenance-free Tier 4 emissions solution – another way the F Series helps you do more while requiring less.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Standard |
| Keyed Ignition | Standard |
| Operator Station | Open Cab, Enclosed Cab |
| Power Type | Diesel |
| Engine | |
|---|---|
| Bore X Stroke | 3.9 x 4.3 in |
| Displacement | 207 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Model | FPT F5H FL463 B*F001 |
| Gross HP | 58 hp |
| No. Of Cylinders | 4 |
| Performance | |
|---|---|
| Breakout Force | 9199 lb |
| Bucket Capacities | 0.92 yd³ (heaped) |
| Lift Capacity | 6947-7050 lb (full height) |
| Rated Operating Capacity (ISO) | 3452-3527 lb |
| Travel Speed | 3.1-12.4 mph |
| Tipping Load | 6997 lb (full turn tipping load ISO) |
| Dump Angle @ Max Height | 47 degrees |
| Power Type | Diesel |
| Driveline | 4WD |
| Capacities | |
|---|---|
| Hydraulic Tank | 14 gal |
| Fuel Tank | 22.7 gal |
| Hydraulic System | |
|---|---|
| Aux Hydraulics Pressure | 3336 psi |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| Make/Model | |
|---|---|
| Model | 21F |
| Type | Wheel Loader |
| Product Dimensions & Weight | |
|---|---|
| Length | 221.90 in |
| Width | 68.50 in |
| Height | 96.80 in |
| Weight | 11272.00 lbs |
