Product Description

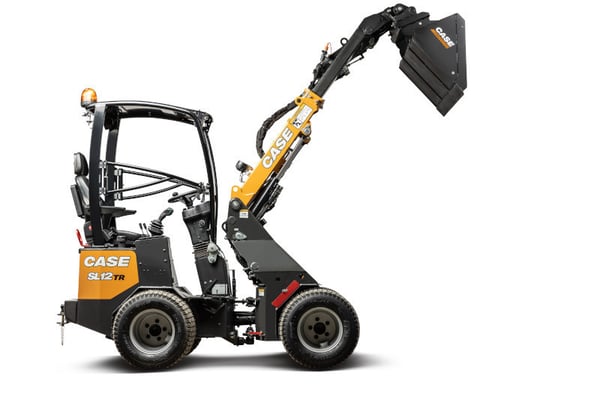

MEET THE SL12 TR ARTICULATED LOADER
For those in need of a little more arm reach, the CASE SL12 TR telescopic boom model has you covered. With a lifting height of 108”, you get over two additional feet of extension, giving you the ability to offload to taller trailers, place mulch or stone with more precision, or use a fork to stack pallets. The small size of this machine lets you wiggle into tight places, and the narrow width is ideal for use clearing snow-covered sidewalks. Plus, the lower operating weight and articulated steering minimizes damage to ground surfaces.
Specs
| Additional Specs | |
|---|---|
| Keyed Ignition | Standard |
| Operator Station | Open Cab |
| Power Type | Diesel |
| Engine | |
|---|---|
| Displacement | 54.8 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Model | Kubota D902 |
| Gross HP | 25 hp |
| No. Of Cylinders | 3 |
| Performance | |
|---|---|
| Lift Capacity | 2425 lb |
| Travel Speed | 9.3 mph |
| Tipping Load | 2205 lb (straight) |
| Dump Angle @ Max Height | 40 degrees |
| Power Type | Diesel |
| Driveline | 4WD |
| Capacities | |
|---|---|
| Hydraulic Tank | 12.7 gal |
| Fuel Tank | 12.2 gal |
| Hydraulic System | |
|---|---|
| Aux Hydraulics Pressure | 2200-5100 psi |
| Hydraulic System | Gear |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| Transmission Range | 2-Speed |
| Make/Model | |
|---|---|
| Model | SL12TR |
| Type | Articulated Loader |
| Product Dimensions & Weight | |
|---|---|
| Length | 89.20 in |
| Width | 36.20 in |
| Height | 81.10 in |
| Weight | 2646.00 lbs |
