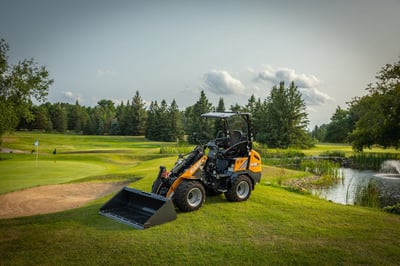

Case Construction SL22EV Small Articulated Loader

Case Construction SL22EV Articulated Loader.jpg

Product Description

Case Construction SL22 EV.jpg

MEET THE SL22EV ARTICULATED LOADER

If you listen closely, you just might be able to hear the SL22EV busting its hump. Yes, this electric model does the grunt work alright, but it grunts very quietly, ideal for noise-sensitive situations. Plus, with zero emissions, it can get down to business in enclosed and indoor spaces. It features plenty of muscle – 4,850 lbs. of lifting capacity – with an expected run time of 5-6 hours. It charges overnight with a 240V single phase connector or in less than 2 hours with the optional fast charge. The rear articulation improves machine weight balance and allows for a larger cab. It also means the ability to work alongside walls with optimal visibility. Which is perfect for seeing your business quietly grow.

Specs

Additional Specs
Air Ride Susp Seat
Optional
Cab Enclosure
Optional
Keyed Ignition
Standard
Operator Station
ROPS, FOPS
Engine
Emissions Tier (EPA)
Electric
Engine Cooling
N/A
Engine Model
3 Phase DC Brushless (IP54)
Fuel Type
Electric
Gross HP
16 hp
Performance
Battery Type
Lithium Ion
Lift Capacity
4850 lb
Travel Speed
11.2 mph
Tipping Load
4528 lb (straight)
Dump Angle @ Max Height
37 degrees
System Voltage
48 v
Gross Battery Capacity
24.9 kWh
Estimated Run Time
5-6 h
On-Board Charge Time-240V
8.7 h
Off-Board Charge Time
1.7 h
Driveline
4WD
Dimensions & Weight
Height
90.6 in
Height with Operator Cab
89.9 in
Length
120.2 in
Length with Standard Bucket
150.8 in
Length without Attachment
120.2 in
Operating Weight
4850 lb
Reach @ Maximum Height
96.5 in
Rollback Angle
41-46 degrees
Turning Radius Outside
42.5 in
Turning Radius
92.2 in
Wheel base
62.2 in
Width
48.4 in
Capacities
Hydraulic Tank
6.6 gal
Fuel Tank
N/A
Hydraulic System
Aux Hydraulics Pressure
2500 psi
Hydraulic System
Gear
Transmission
Transmission
Electric
Make/Model
Model
SL22EV
Type
Articulated Loader
Product Dimensions & Weight
Length
120.20 in
Width
48.40 in
Height
90.60 in
Weight
4850.00 lbs
