Case Construction SR175B Skid-Steer Loader

Case Construction S R175 B Skid Steer

Product Description

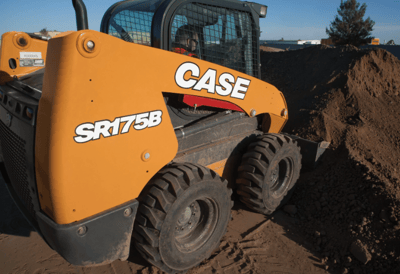

Case Construction SR175B skid steer.png

MEET THE SR175B SKID STEER

The CASE SR175B skid steer sports a compact footprint. But look deeper, and you’ll see a ton of productivity packed in. This radial-lift machine features a rated operating capacity of 1,750 lbs. Along with 67 hp, you’re set for medium-duty jobs. The cab has electro-hydraulic controls and four ride control activation speeds to accommodate different tasks. There’s visibility like no other, thanks to large windows and integrated rear camera. And the big cab keeps operators comfy.

ELECTRO-HYDRAULIC CONTROLS

Case Construction 8 in LCD.png
Dial the machine in to meet the demands of each application with all-new electro-hydraulic controls available through the 8-inch LCD multi-function display. Adjust general machine responsiveness to high, medium or low; or dive deeper to individually adjust tilt, lift and drive speed, as well as loader arm and control aggressiveness.

RADIAL LIFT CONFIGURATION

Case Construction Radial Lift.png
Radial-lift machines are engineered for digging, prying and pushing. The angle of the arm ties directly into the chassis for superior strength when digging and pushing. It also provides maximum reach at the operator’s head height, making it perfect for loading and unloading pallets from trucks

Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS, FOPS, Canopy
Engine
Bore X Stroke
3.31 x 3.94 in
Displacement
135.2 cu in
Emissions Tier (EPA)
Stage 5
Engine Cooling
Liquid
Engine Model
Perkins 404F-E22TA
Fuel Type
Diesel
Gross HP
67 hp
No. Of Cylinders
4
Turbocharged Engine
Yes, w/ waste gate and intercooled w/ external EGR
Performance
Breakout Force
7270 lb
Lift Arm Path
Radial lift
Travel Speed
Low: 7.4 mph, High: 10.8 mph
Operating Capacity (50% of Tip)
1750 lb
Tipping Load
3500 lb
Dump Angle @ Max Height
39.6 degrees
Driveline
4WD
Dimensions & Weight
Ground Clearance
7 in
Height
153.4 in
Height to Bucket Hinge Pin
122 in
Height with Operator Cab
77.7 in
Length
105.7 in
Length with Standard Bucket
130.1 in
Length without Attachment
105.7 in
Operating Weight
6270 lb
Reach @ Maximum Height
24.4 in
Tire Size
10 x 16.5
Wheel base
44.4 in
Width
64.6 in
Capacities
Hydraulic Tank
8.5 gal
Fuel Tank
19.5 gal
Hydraulic System
Auxiliary Std Flow
20.6 gpm
Hydraulic System
Gear
Transmission
Transmission
Hydrostatic (HST)
Transmission Range
2-Speed
Make/Model
Model
SR175B
Type
Skid-Steer Loader
Product Dimensions & Weight
Length
105.70 in
Width
64.60 in
Height
77.70 in
Weight
5970.00 lbs
