Case Construction SR210B Skid-Steer Loader

Case Construction S R210 B Skid Steer

Product Description

Case Construction SR210B skid steer.png

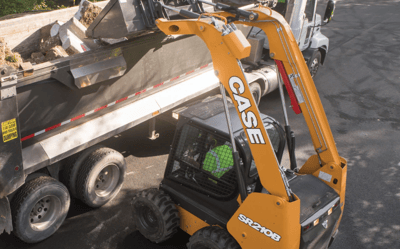

MEET THE SR210B SKID STEER

The SR210B is an extremely popular medium-frame skid steer that looks and feels compact, but offers operators the performance of a larger machine – greater torque, breakout force and auxiliary hydraulic performance than comparably sized machines — all accomplished at 74 horsepower to leverage completely maintenance-free Tier 4 Final emissions solutions with no diesel particulate filter (DPF) or fluids to add.

RADIAL LIFT CONFIGURATION

Case Construction Radial Lift.png
Radial-lift machines are engineered for digging, prying and pushing. The angle of the arm ties directly into the chassis for superior strength when digging and pushing. It also provides maximum reach at the operator’s head height, making it perfect for loading and unloading pallets from trucks.

MORE ROOM, MORE COMFORT

Case Construction Operator Controls.png
CASE skid steer loaders boast nearly three feet of width, offering one of the most spacious ROPS/FOPS-certified cabs in the industry. With new controls and a refined interior, the cab provides ample legroom, while the fully sealed and pressurized enclosed options minimize noise and dust; additional features include Bluetooth radio, climate controls, and a heated seat.

Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS, FOPS, Canopy
Engine
Bore X Stroke
3.9 x 4.3 in
Displacement
207 cu in
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Model
FPT F5H FL463 A
Fuel Type
Diesel
Gross HP
74 hp
No. Of Cylinders
4
Turbocharged Engine
Yes, w/ waste gate and external cooled EGR
Performance
Breakout Force
7270 lb
Lift Arm Path
Radial lift
Travel Speed
Low: 7.1 mph, High: 10.5 mph
Operating Capacity (50% of Tip)
2100 lb
Tipping Load
4200 lb
Dump Angle @ Max Height
39.6 degrees
Driveline
4WD
Dimensions & Weight
Ground Clearance
8 in
Height
154.3 in
Height to Bucket Hinge Pin
123 in
Height with Operator Cab
78.7 in
Length
105.1 in
Length with Standard Bucket
129.6 in
Length without Attachment
105.1 in
Operating Weight
6970 lb
Reach @ Maximum Height
23.4 in
Tire Size
12 x 16.5
Wheel base
44.4 in
Width
69.1 in
Capacities
Hydraulic Tank
8.5 gal
Fuel Tank
19.5 gal
Hydraulic System
Auxiliary Std Flow
24.2 gpm
Hydraulic System
Gear
Transmission
Transmission
Hydrostatic (HST)
Transmission Range
2-Speed
Make/Model
Model
SR210B
Type
Skid-Steer Loader
Product Dimensions & Weight
Length
105.10 in
Width
69.10 in
Height
78.70 in
Weight
6670.00 lbs
