Case Construction SV185B Skid-Steer Loader

Case Construction S V185 B

Product Description

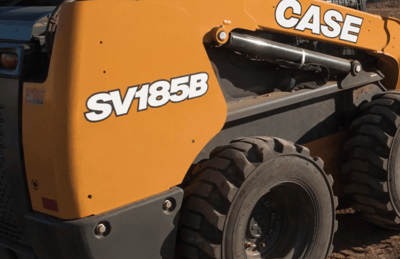

Case Construction SV185B skid steer.png

MEET THE SV185B SKID STEER

Operations that do a lot of truck loading or pallet stacking will like the lift path of the CASE SV185B. This compact, vertical-lift machine boasts a 1,850 lb. rated operating capacity and 5,500 lb. bucket breakout force that let you put the heavy stuff up where it needs to be. It’s available in electro-hydraulic, mechanical hand, and mechanical hand and foot configurations depending on operator preference. You get a great view of your work area, thanks to a backup camera, large windows and low entry threshold. And with easy access to daily checkpoints, you can get to it and through it.

VERTICAL LIFT CONFIGURATION

Case Construction Vertical Lift.png
Vertical-lift machines are engineered for lift-and-carry and truck-loading jobs. The geometry of the dual arm allows the load to rise directly up, providing maximum reach at full height. Vertical-lift machines are ideal for reaching over the side of and into the middle of high-side trucks.

EASE OF OPERATION

Case Construction Operator Controls.png
CASE skid steer loaders offer effortless operation with advanced electro-hydraulic controls for a fully customizable experience, letting you switch patterns and adjust control aggressiveness with ease. Creep Speed adds precision, allowing perfect machine and attachment speeds for even the toughest tasks.

Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS, FOPS, Canopy
Engine
Bore X Stroke
3.31 x 3.94 in
Displacement
135.2 cu in
Emissions Tier (EPA)
Stage 5
Engine Cooling
Liquid
Engine Model
Perkins 404F-E22TA
Fuel Type
Diesel
Gross HP
60 hp
No. Of Cylinders
4
Turbocharged Engine
Yes, w/ waste gate and intercooled w/ external EGR
Performance
Breakout Force
5550 lb
Lift Arm Path
Vertical lift
Travel Speed
Low: 7.4 mph, High: 10.8 mph
Operating Capacity (50% of Tip)
1850 lb
Tipping Load
3700 lb
Dump Angle @ Max Height
51.9 degrees
Driveline
4WD
Dimensions & Weight
Ground Clearance
7 in
Height
150.4 in
Height to Bucket Hinge Pin
120 in
Height with Operator Cab
77.7 in
Length
105.7 in
Length with Standard Bucket
131.7 in
Length without Attachment
105.7 in
Operating Weight
6570 lb
Reach @ Maximum Height
33.7 in
Tire Size
10 x 16.5
Wheel base
44.4 in
Width
64.6 in
Capacities
Hydraulic Tank
8.5 gal
Fuel Tank
19.5 gal
Hydraulic System
Auxiliary Std Flow
20.6 gpm
Hydraulic System
Gear
Transmission
Transmission
Hydrostatic (HST)
Transmission Range
2-Speed
Make/Model
Model
SV185B
Type
Skid-Steer Loader
Product Dimensions & Weight
Length
105.70 in
Width
64.60 in
Height
77.70 in
Weight
6270.00 lbs
