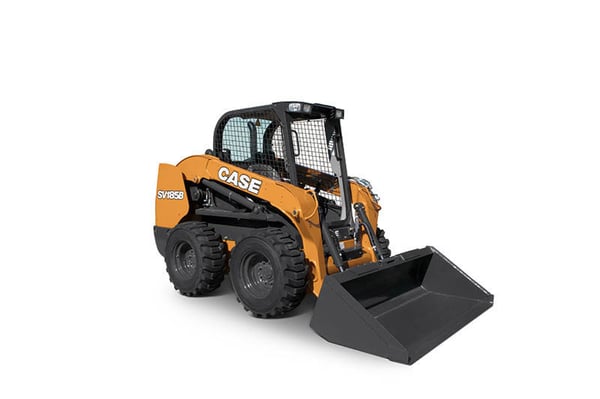

Name: Case Construction SV185B Skid-Steer Loader
Brand: Case Construction
SKU: SV185B
Availability: InStock

Product Description

MEET THE SV185B SKID STEER

Operations that do a lot of truck loading or pallet stacking will like the lift path of the CASE SV185B. This compact, vertical-lift machine boasts a 1,850 lb. rated operating capacity and 5,500 lb. bucket breakout force that let you put the heavy stuff up where it needs to be. It’s available in electro-hydraulic, mechanical hand, and mechanical hand and foot configurations depending on operator preference. You get a great view of your work area, thanks to a backup camera, large windows and low entry threshold. And with easy access to daily checkpoints, you can get to it and through it.

VERTICAL LIFT CONFIGURATION

Vertical-lift machines are engineered for lift-and-carry and truck-loading jobs. The geometry of the dual arm allows the load to rise directly up, providing maximum reach at full height. Vertical-lift machines are ideal for reaching over the side of and into the middle of high-side trucks.

EASE OF OPERATION

CASE skid steer loaders offer effortless operation with advanced electro-hydraulic controls for a fully customizable experience, letting you switch patterns and adjust control aggressiveness with ease. Creep Speed adds precision, allowing perfect machine and attachment speeds for even the toughest tasks.

Specs

Additional Specs
Cab Enclosure	Optional
Operator Station	Open Cab
Power Type	Diesel

Engine
Bore X Stroke	3.31 x 3.94 in
Displacement	135.2 cu in
Emissions Tier (EPA)	Stage 5
Engine Cooling	Liquid
Engine Model	Perkins 404F-E22TA
Gross HP	60 hp
No. Of Cylinders	4
Turbocharged Engine	Yes, w/ waste gate and intercooled w/ external EGR

Performance
Breakout Force	5550 lb
Lift Arm Path	Vertical lift
Travel Speed	Low: 7.4 mph, High: 10.8 mph
Operating Capacity (50% of Tip)	1850 lb
Tipping Load	3700 lb
Dump Angle @ Max Height	51.9 degrees
Power Type	Diesel
Driveline	4WD
