Case Construction TR310B Compact Track Loader

Case Construction T R310 B

Product Description

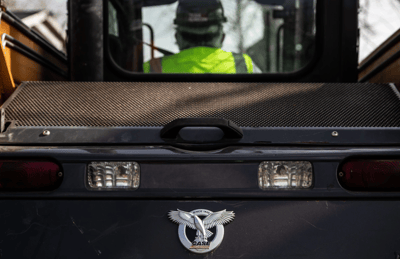

Case Construction TR310B track loader.png

MEET THE TR310B TRACK LOADER

The TR310B sets the standard for strength and stability in a medium-frame CTL, with wider tracks and powerful lift cylinders that provide a greater rated operating capacity (3,100 pounds at 50 percent tipping load) without sacrificing a compact footprint, low ground pressure or the machine’s maintenance-free Tier 4 Final emissions solution.

ADJUSTABLE ELECTRO-HYDRAULIC CONTROLS

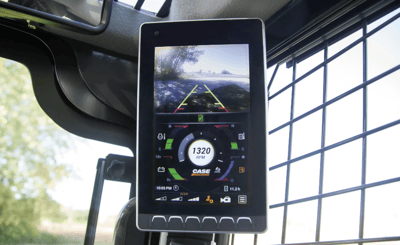

Case Construction TR310B controls.png
Dial the machine in to meet the demands of each application with all-new electro-hydraulic controls available through the 8-inch LCD multi-function display. Adjust general machine responsiveness to high, medium or low; or dive deeper to individually adjust tilt, lift and drive speed, as well as loader arm and control aggressiveness.

RADIAL LIFT PATH

Case Construction Track Loader Radial Lift .png
Radial-lift machines are engineered for digging, prying and pushing. The angle of the arm ties directly into the chassis for superior strength when digging and pushing. It also provides maximum reach at the operator’s head height, making it perfect for loading and unloading pallets from trucks

Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS, Open Cab
Engine
Bore X Stroke
3.9 x 4.3 in
Displacement
207 cu in
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Model
FPT F5H FL463 A
Fuel Type
Diesel
Gross HP
74 hp
No. Of Cylinders
4
Turbocharged Engine
Yes, w/ waste gate and external cooled EGR
Performance
Breakout Force
8680 lb
Ground Pressure
5 psi
Lift Arm Path
Radial lift
Travel Speed
Rubber tracks: 5.1-8 mph
Operating Capacity (50% of Tip)
3100 lb
Tipping Load
6200 lb
Dump Angle @ Max Height
38.1 degrees
Driveline
Track
Dimensions & Weight
Ground Clearance
8 in
Height
155.6 in
Height to Bucket Hinge Pin
125.1 in
Length
104.8 in
Length with Standard Bucket
129.1 in
Length without Attachment
104.8 in
Length of Track on Ground
55.9 in
Operating Weight
8880 lb
Reach @ Maximum Height
25.6 in
Track Width
15.75 in
Width
74.3 in
Capacities
Hydraulic Tank
10 gal
Fuel Tank
19.5 gal
Hydraulic System
Auxiliary Std Flow
24.2 gpm
Hydraulic System
Gear
Transmission
Transmission
Hydrostatic (HST)
Transmission Range
2-Speed
Make/Model
Model
TR310B
Type
Track Loader
Product Dimensions & Weight
Length
104.80 in
Width
74.30 in
Height
78.70 in
Weight
8580.00 lbs
