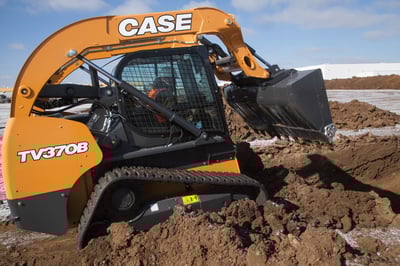

Case Construction TV370B Compact Track Loader

Case Construction T V370 B Loader

Product Description

Case Construction T V370 B

MEET THE TV370B TRACK LOADER

The TV370B is ideal for contractors looking for large-frame CTL strength and capacity in an extremely efficient machine. At 74 horsepower, it delivers rated operating capacity (3,700 pounds at 50 percent tipping load) and reach that allows it to load, lift and carry with the big boys – all powered by a maintenance-free Tier 4 Final emissions solution. The TV370 is extremely versatile and compatible with hundreds of attachments for even greater productivity.

VERTICAL LIFT MACHINE

Case Construction Track Loader Vertical Lift.png
Vertical-lift machines are engineered for lift-and-carry and truck-loading jobs. The geometry of the dual arm allows the load to rise directly up, providing maximum reach at full height. Vertical-lift machines are ideal for reaching over the side of and into the middle of high-side trucks.

EZ TRAC OPTION

Case Construction TR340B EZ Trac.jpg
The EZ Trac suspension track on the TV370B improves operator comfort and tractive performance by featuring a rigid-mounted undercarriage with pivoting bogeys. It's maintenance-free, extends rubber track life, and enhances productivity while reducing ownership costs.

Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS, Open Cab
Engine
Bore X Stroke
3.9 x 4.3 in
Displacement
207 cu in
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Model
FPT F5H FL463 A
Fuel Type
Diesel
Gross HP
74 hp
No. Of Cylinders
4
Turbocharged Engine
Yes, w/ waste gate and external cooled EGR
Performance
Breakout Force
8593 lb
Ground Pressure
4.2 psi
Lift Arm Path
Vertical lift
Travel Speed
Rubber tracks: 5.1-8 mph
Operating Capacity (50% of Tip)
3700 lb
Tipping Load
7400 lb
Dump Angle @ Max Height
54.6 degrees
Driveline
Track
Dimensions & Weight
Ground Clearance
9.6 in
Height
160.2 in
Height to Bucket Hinge Pin
131.1 in
Length
117 in
Length with Standard Bucket
141.1 in
Length without Attachment
117 in
Length of Track on Ground
64.5 in
Operating Weight
9945 lb
Reach @ Maximum Height
40.5 in
Track Width
17.7 in
Width
76.5 in
Capacities
Hydraulic Tank
11.9 gal
Fuel Tank
25.5 gal
Hydraulic System
Auxiliary Std Flow
24.2 gpm
Hydraulic System
Gear
Transmission
Transmission
Hydrostatic (HST)
Transmission Range
2-Speed
Make/Model
Model
TV370B
Type
Track Loader
Product Dimensions & Weight
Length
117.00 in
Width
76.50 in
Height
80.40 in
Weight
9615.00 lbs
