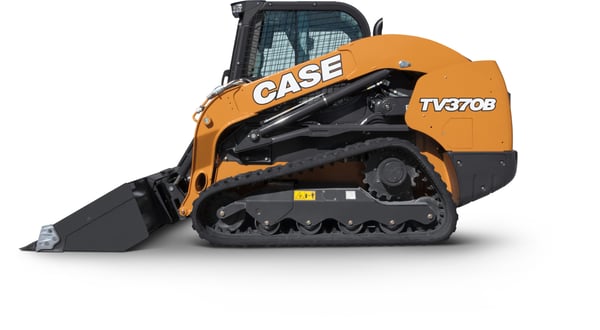

Name: Case Construction TV370B Compact Track Loader
Brand: Case Construction
SKU: TV370B
Availability: InStock

Product Description

MEET THE TV370B TRACK LOADER

The TV370B is ideal for contractors looking for large-frame CTL strength and capacity in an extremely efficient machine. At 74 horsepower, it delivers rated operating capacity (3,700 pounds at 50 percent tipping load) and reach that allows it to load, lift and carry with the big boys – all powered by a maintenance-free Tier 4 Final emissions solution. The TV370 is extremely versatile and compatible with hundreds of attachments for even greater productivity.

VERTICAL LIFT MACHINE

Case Construction Track Loader Vertical Lift.png

Vertical-lift machines are engineered for lift-and-carry and truck-loading jobs. The geometry of the dual arm allows the load to rise directly up, providing maximum reach at full height. Vertical-lift machines are ideal for reaching over the side of and into the middle of high-side trucks.

EZ TRAC OPTION

The EZ Trac suspension track on the TV370B improves operator comfort and tractive performance by featuring a rigid-mounted undercarriage with pivoting bogeys. It's maintenance-free, extends rubber track life, and enhances productivity while reducing ownership costs.

Specs

Additional Specs
Cab Enclosure	Optional
Operator Station	Open Cab
Power Type	Diesel

Engine
Bore X Stroke	3.9 x 4.3 in
Displacement	207 cu in
Emissions Tier (EPA)	Tier 4
Engine Cooling	Liquid
Engine Model	FPT F5H FL463 A
Gross HP	74 hp
No. Of Cylinders	4
Turbocharged Engine	Yes, w/ waste gate and external cooled EGR

Performance
Breakout Force	8593 lb
Ground Pressure	4.2 psi
Lift Arm Path	Vertical lift
Travel Speed	Rubber tracks: 5.1-8 mph
Operating Capacity (50% of Tip)	3700 lb
Tipping Load	7400 lb
Dump Angle @ Max Height	54.6 degrees
Power Type	Diesel
Driveline	Track
