Case Construction TV450B Compact Track Loader

Case Construction T V450 B

Product Description

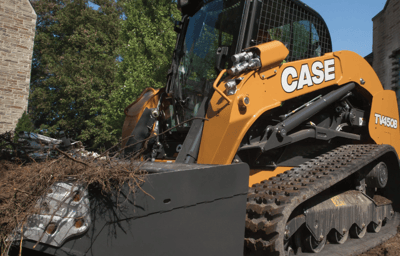

Case Construction TV450B track loader.png

MEET THE TV450B TRACK LOADER

The TV450B is one of the most popular and powerful CTLs in the CASE lineup, allowing contractors to lift and load more, run more powerful attachments, and be more productive when working against the clock. The 4,500-pound rated operating capacity at 50 percent tipping load, matched with high bucket and lift cylinder breakout forces, as well as an extremely powerful enhanced high-flow auxiliary hydraulics option, makes the CASE TV450B your next low ground pressure/high performing workhorse.

VERTICAL LIFT PATH

Case Construction Track Loader Vertical Lift.png
Vertical-lift machines are engineered for lift-and-carry and truck-loading jobs. The geometry of the dual arm allows the load to rise directly up, providing maximum reach at full height. Vertical-lift machines are ideal for reaching over the side of and into the middle of high-side trucks.

DOZER-STYLE UNDERCARRIAGE

Case Construction TV450B undercarriage.png
The dozer-style undercarriage and tracks of the TV450B are engineered to hold better on slopes and take command of muddy or sandy terrain. The rigid-track frame has fewer moving parts for greater durability and easier maintenance than suspension-track systems.

Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS, Open Cab
Engine
Bore X Stroke
3.9 x 4.3 in
Displacement
207 cu in
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Model
FPT F5B FL413 D
Fuel Type
Diesel
Gross HP
90 hp
No. Of Cylinders
4
Turbocharged Engine
Yes, w/ waste gate and external cooled EGR
Performance
Breakout Force
9188 lb
Ground Pressure
4.6 psi
Lift Arm Path
Vertical lift
Travel Speed
Rubber tracks: 5.5-8 mph
Operating Capacity (50% of Tip)
4500 lb
Tipping Load
9000 lb
Dump Angle @ Max Height
45.3 degrees
Driveline
Track
Dimensions & Weight
Ground Clearance
9.5 in
Height
161.4 in
Height to Bucket Hinge Pin
131.6 in
Length
120.2 in
Length with Standard Bucket
144.4 in
Length without Attachment
120.2 in
Length of Track on Ground
64.5 in
Operating Weight
10610 lb
Reach @ Maximum Height
35.1 in
Track Width
17.7 in
Width
76.5 in
Capacities
DEF
2.8 gal
Hydraulic Tank
11.9 gal
Fuel Tank
25.5 gal
Hydraulic System
Auxiliary Std Flow
24.2 gpm
Hydraulic System
Gear
Transmission
Transmission
Hydrostatic (HST)
Transmission Range
2-Speed
Make/Model
Model
TV450B
Type
Track Loader
Product Dimensions & Weight
Length
120.20 in
Width
76.50 in
Height
80.40 in
Weight
10267.00 lbs
