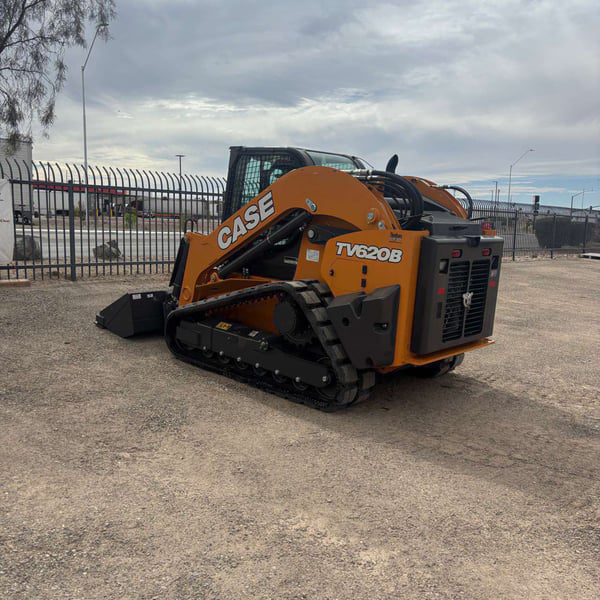

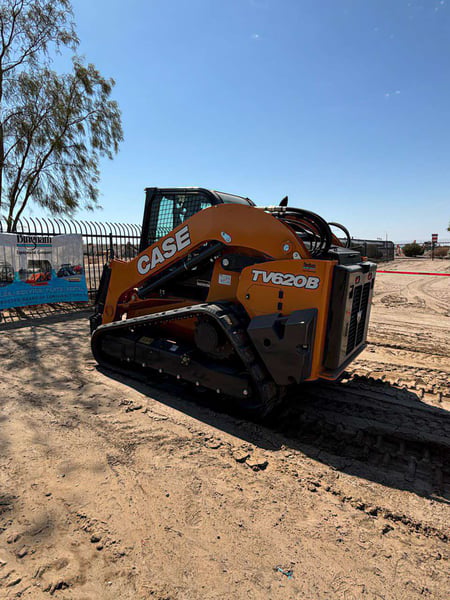

Case Construction TV620B Compact Track Loader

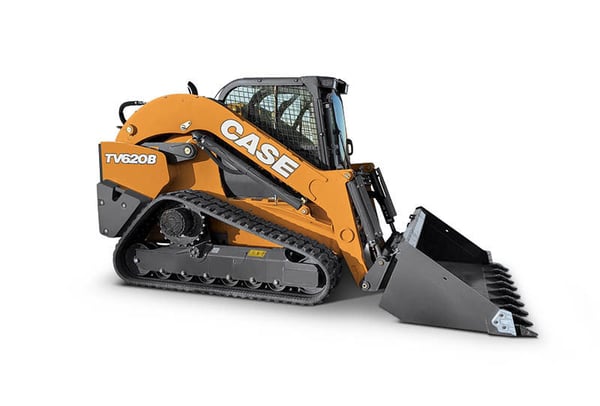

Case Construction T V620 B

Product Description

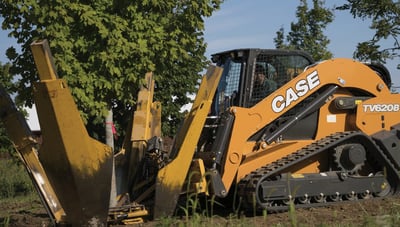

Case Construction TV620B track loader.jpg

MEET THE TV620B TRACK LOADER

The CASE TV620B is the big fella among compact track loaders. This brute has no equal. For proof, see the industry-leading performance stats like rated operating capacity (6,200 lbs. at 50% tipping load), breakout forces (12,907 lbs. bucket and 12,084 lbs. lift) and track length on the ground (74 in.). Pick the EZ Trac option and see just how smooth all that power feels. The standard features go beyond anything out there. Electro-hydraulic controls. High-flow hydraulics. Automatic Ride Control and one-way self-leveling. LED lights. And much more. Which is exactly what this machine lets you accomplish.

EZ TRAC OPTION

Case Construction TR340B EZ Trac.jpg
The EZ Trac suspension track on the TR340B improves operator comfort and tractive performance by featuring a rigid-mounted undercarriage with pivoting bogeys. It's maintenance-free, extends rubber track life, and enhances productivity while reducing ownership costs.

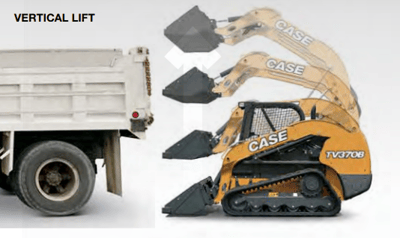

VERTICAL LIFT PATH

Case Construction Track Loader Vertical Lift.png
Vertical-lift machines are engineered for lift-and-carry and truck-loading jobs. The geometry of the dual arm allows the load to rise directly up, providing maximum reach at full height. Vertical-lift machines are ideal for reaching over the side of and into the middle of high-side trucks.

Specs

Additional Specs
Cab Enclosure
Standard
Operator Station
ROPS, Enclosed Cab
Engine
Bore X Stroke
3.9 x 4.3 in
Displacement
207 cu in
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Model
FPT F5B FL413 D
Fuel Type
Diesel
Gross HP
114 hp
No. Of Cylinders
4
Turbocharged Engine
Yes, w/ waste gate and external cooled EGR
Performance
Breakout Force
12907 lb
Ground Pressure
6.1-9.1 psi
Lift Arm Path
Vertical lift
Travel Speed
Rubber tracks: 5-8.7 mph, Steel tracks: 3.1-5.9 mph
Operating Capacity (50% of Tip)
6200 lb
Tipping Load
12400 lb
Dump Angle @ Max Height
46.1 degrees
Driveline
Track
Dimensions & Weight
Ground Clearance
12.6 in
Height
176.5 in
Height to Bucket Hinge Pin
140.2 in
Length
129.5 in
Length with Standard Bucket
159.1 in
Length without Attachment
129.5 in
Length of Track on Ground
66-74 in
Operating Weight
16100 lb
Reach @ Maximum Height
39 in
Track Width
17.7 in
Width
74.6-78.6 in
Capacities
DEF
3.3 gal
Hydraulic Tank
10.7 gal
Fuel Tank
30.8 gal
Hydraulic System
Auxiliary Std Flow
24.2 gpm
Hydraulic System
Axial Piston
Transmission
Transmission
Hydrostatic (HST)
Transmission Range
2-Speed
Make/Model
Model
TV620B
Type
Track Loader
Product Dimensions & Weight
Length
129.50 in
Width
78.30 in
Height
84.60 in
Weight
16000.00 lbs
