New
Kubota SVL97-2 Track Loader
New
Kubota SVL97-2 Track Loader
Manufacturers:
- Up to 7.3-mph
- 96.4 engine horsepower
- 11,552 lbs. rated operating weight
Product Description
MEET THE SVL97-2 TRACK LOADER
Be the solution you’re searching for as you power through obstacles in your path and adapt to the conditions at hand in the Kubota SVL97-2. The SVL97-2 and its 96.4 horsepower are ready to move ground and make sure you’re working in comfort and in confidence. Factor in its dominant tipping load, breakout force and advanced hydraulic system and we think you and the SVL97-2 are going to get along nicely.
Kubota is the #1 Selling Compact Track Loader in the USA.*
*Based on EDA/UCC Data from 01/01/2020 - 12/31/2024 for sales of new compact track loaders in the USA.
VERTICAL LIFT PATH
STANDARD TWO-SPEED TRAVEL
TRACKS
The Kubota SVL97-2 track loader is built for durability with a welded, integrated mainframe and undercarriage. Its original rubber tracks enhance longevity and traction by preventing soil accumulation. The triple flange lower track rollers improve stability and are lifetime sealed and lubricated to reduce detracking.
Specs
| Additional Specs | |
|---|---|
| Operator Station | Open Cab, Enclosed Cab |
| Engine | |
|---|---|
| Aspiriation | Turbocharged |
| Bore X Stroke | 3.94 x 4.72 in |
| Displacement | 230 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Model | V3800-TIEF4 |
| Gross HP | 96.4 hp |
| No. Of Cylinders | 4 |
| Performance | |
|---|---|
| Bucket Breakout Force | 7623 lbf |
| Ground Pressure | 4.4-4.5 psi |
| Lift Arm Path | Vertical lift |
| Travel Speed | High: 7.3 mph, Low: 5.0 mph |
| Tipping Load | 9143 lbs |
| Dump Angle @ Max Height | 43 degree |
| Dimensions & Weight | |
|---|---|
| Ground Clearance | 11.5 in |
| Height to Bucket Hinge Pin | 128.5 in |
| Length of Track on Ground | 65.6 in |
| Operating Weight | 11299-11574 lbs |
| Reach @ Maximum Height | 40.7 in |
| Track Width | 17.7 in (standard) |
| Turning Radius | 127 in |
| Capacities | |
|---|---|
| Hydraulic Tank | 10.1 gal |
| Fuel Tank | 28.8 gal |
| Hydraulic System | |
|---|---|
| Auxiliary Std Flow | 23.1-40 gpm |
| Make/Model | |
|---|---|
| Model | SVL97-2 |
| Type | Track Loader |
| Product Dimensions & Weight | |
|---|---|
| Length | 154.60 in |
| Width | 80.00 in |
| Height | 83.30 in |
| Weight | 11574.00 lbs |
Related Products
Model Inventory
Stock #: 124871
Model: SVL97-2
- Enclosed Cab with cold A/C
- Compact size; maximum versatility
- 96.4 Horsepower

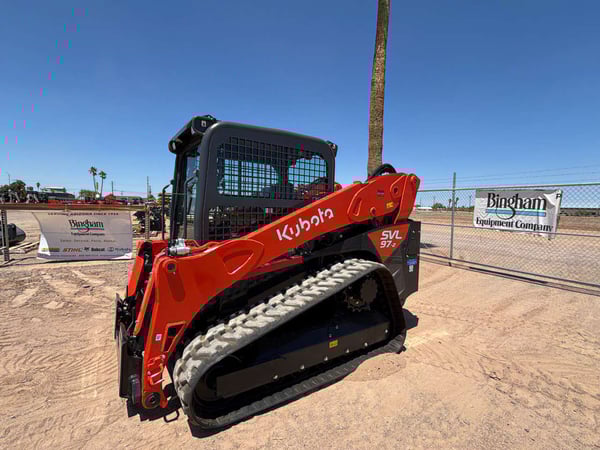

Stock #: 124872
Model: SVL97-2
- Enclosed Cab with cold A/C
- Compact size; maximum versatility
- 96.4 Horsepower

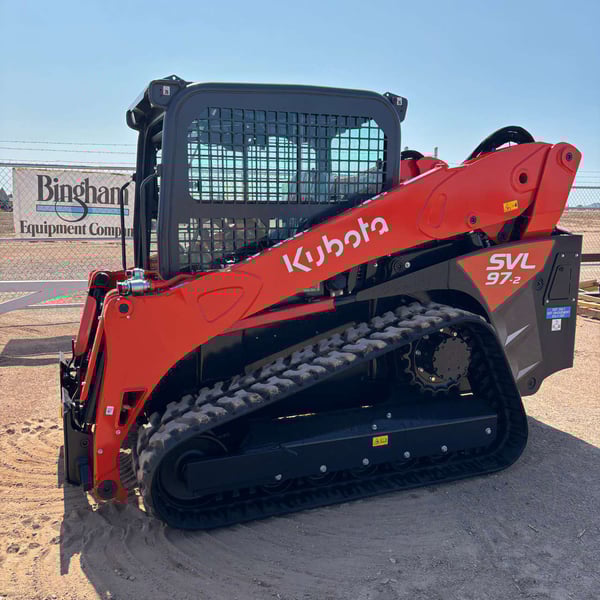

Stock #: 124870
Model: SVL97-2
- Enclosed Cab with cold A/C
- Compact size; maximum versatility
- 96.4 Horsepower

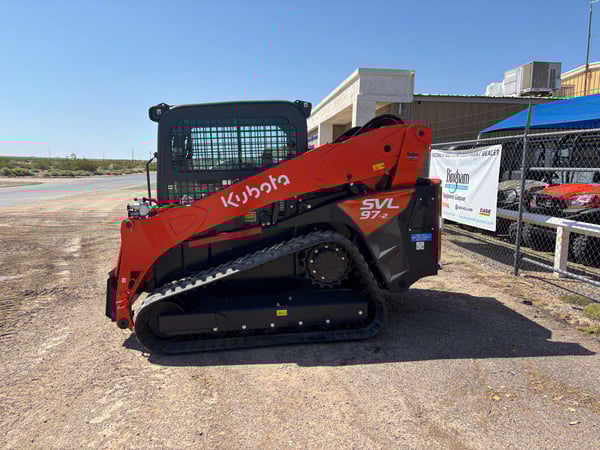

Stock #: 122228
Model: SVL97-2
- Enclosed Cab with cold A/C
- Compact size; maximum versatility
- 96.4 Horsepower

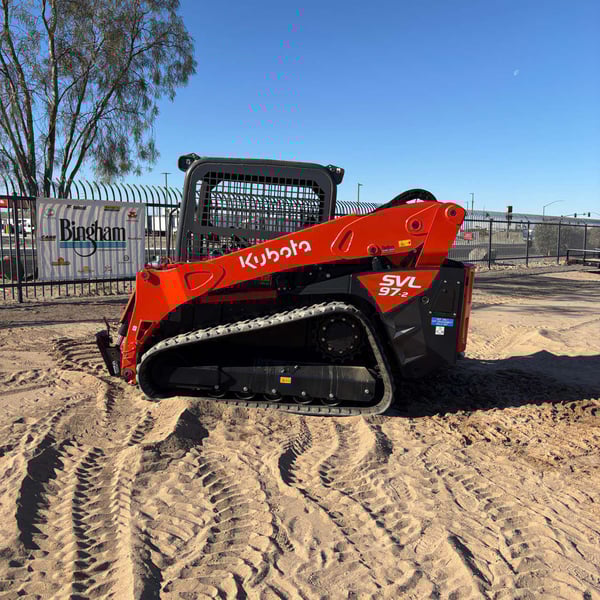

Stock #: 111797
Model: SVL97-2
- Low hour machine; High value!
- Compact size; maximum versatility
- 96.4 Horsepower

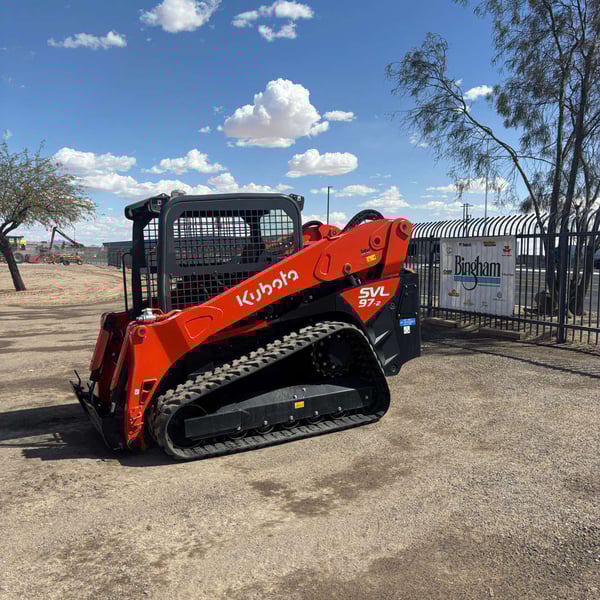

Stock #: 099594
Model: SVL97-2
- Low hour machine; High value!
- Compact size; maximum versatility
- 96.4 Horsepower
Stock #: 118307
Model: SVL97-2
- Enclosed Cab with cold A/C
- Compact size; maximum versatility
- 96.4 Horsepower

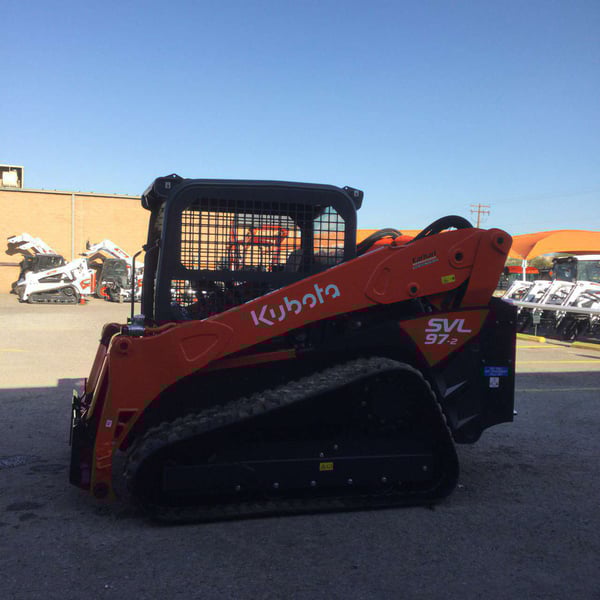

Stock #: 111798
Model: SVL97-2
- Low hour machine; High value!
- Compact size; maximum versatility
- 96.4 Horsepower
Stock #: 118306
Model: SVL97-2
- Low hour machine; High value!
- Enclosed Cab with cold A/C
- Compact size; maximum versatility

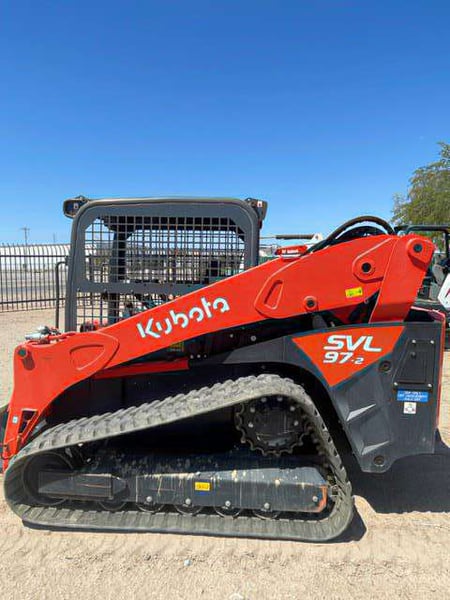

Stock #: 086286A
Model: SVL97-2
- Compact size; maximum versatility
- 96.4 Horsepower

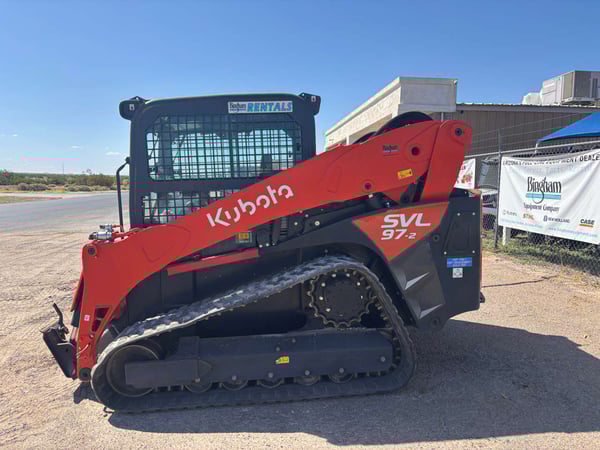

Stock #: 117793
Model: SVL97-2
- Low hour machine; High value!
- Enclosed Cab with cold A/C
- Compact size; maximum versatility

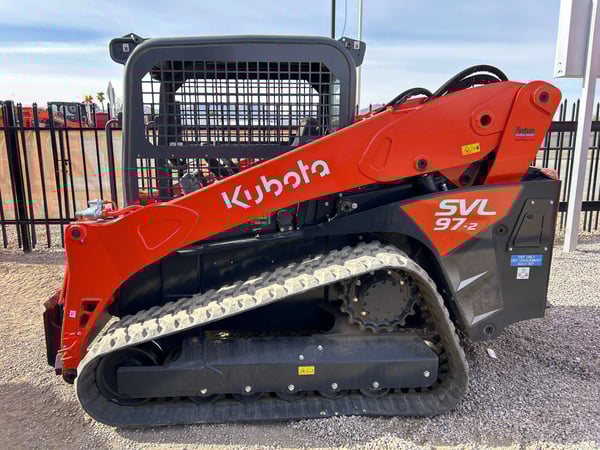

Stock #: 099592
Model: SVL97-2
- Compact size; maximum versatility
- 96.4 Horsepower
- Extended Warranty until 12-21-2026

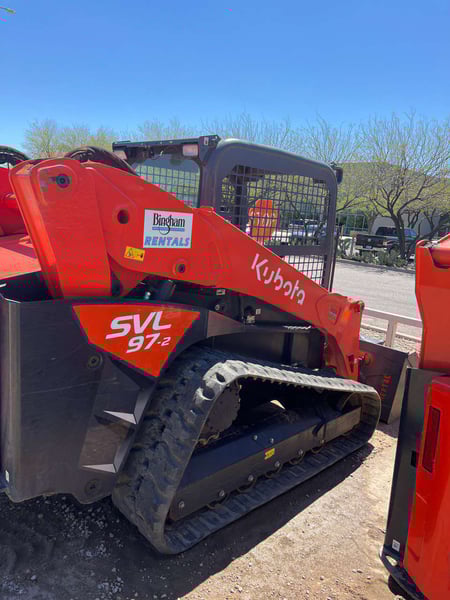

Stock #: 086288
Model: SVL97-2
- Compact size; maximum versatility
- 96.4 Horsepower
- Extended Warranty until 05-04-2027

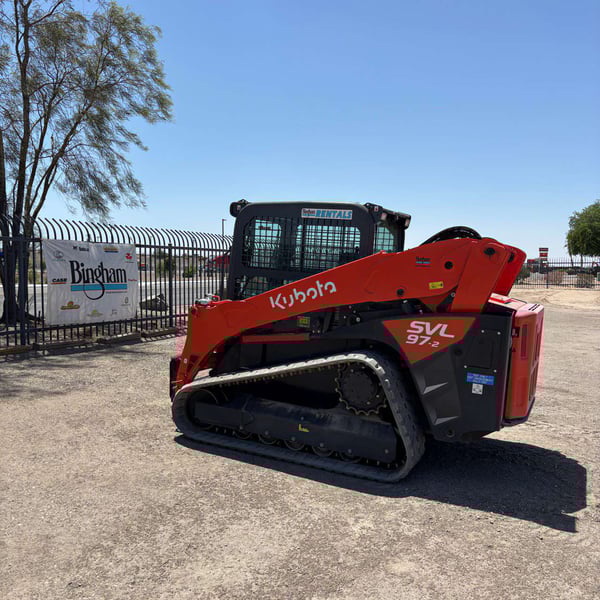

Stock #: 117794
Model: SVL97-2
- Enclosed Cab with cold A/C
- Compact size; maximum versatility
- 96.4 Horsepower
