New Holland 165 Box Spreader
New
New Holland 165 Box Spreader
Model: 165
- 12,000 lb. maximum net load
- 258 cu. ft single beater heap
- 55 minimum PTO horsepower required
Product Description

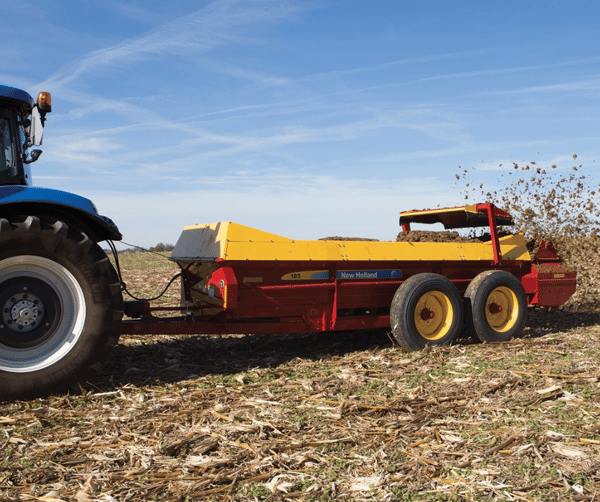

NEW HOLLAND 165 BOX SPREADER
The 165 box spreader is known for its heavy-duty, long-lasting design with low maintenance requirements. It features a rugged jack mounted inside the hitch for protection, up to 12 steel beaters for efficient spreading, and bolt-on paddles for fine shredding. Its reliable V-belt drive ensures quiet, smooth operation without the need for a slip clutch.
Specs
| Additional Specs | |
|---|---|
| Minimum PTO HP Required | 55 hp |
| Dimensions & Weight | |
|---|---|
| Overall Length | 251.8 in (6.39 m) |
| Overall Width | 101 in (2.56 m) |
| Weight Hubs Only ( lbs) | 2300 lbs |
| Inside bed length (in. (m)) | 176 (4.47) |
| Inside Width of Bed (in. (m)) | 60.9 (1.55) |
| Inside Bed Depth, Top of Flare (in. (m)) | 22.6 (0.58) |
| Spreader Specs | |
|---|---|
| Capacity Heaped, Double Beater (cu. ft. (m³)) | 313 (8.86) |
| Capacity Heaped, single beater (cu. ft (m³)) | 258 (7.31) |
| Maximum Net Load (lbs. (kg)) | 12,000 (5443) |
| Mechanical Drive | 2 (plus 1 slow-speed option) |
| Number of Beater Paddles | 12 |
| Struck Level (cu. ft. (m³)) | 156 (4.42) |
| Make/Model | |
|---|---|
| Model | 165 |
| Type | Spreader |
| Product Dimensions & Weight | |
|---|---|
| Length | 251.80 in |
| Width | 101.00 in |
| Height | 62.80 in |
| Weight | 2300.00 lbs |
