New

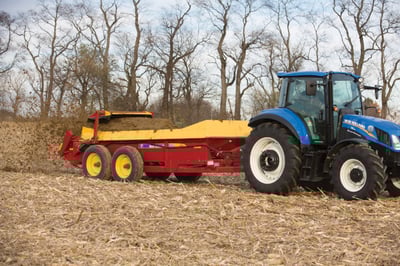

New Holland 185 Box Spreader
New
New Holland 185 Box Spreader
Model: 185
- 13,000 lbs. maximum net load
- 278 cu. ft single beater heap
- 60 minimum PTO horsepower required
Product Description
NEW HOLLAND 185 BOX SPREADER
The 185 box spreader is equipped with 12 bolt-on, high strength, steel paddles resembling knife-like cutting and shredding actions for a wide, fine spread pattern. It's corrosion-resistant, and twice as strong as ordinary steel. The unique floating floor, made of 3/4-inch x 6-inch high-density polyethylene tongue-and-groove planks provide an acid- and mold-resistant barrier, plus it won't rot, warp, chip, crack, peel or splinter, making it extremely low maintenance. Choose either heavy-duty T-rod or pintle-type apron chains to match your spreading conditions. Convenient rotary quadrant control allows the operator to set the apron speed from the tractor, including neutral, slow-unloading, fast-unloading, clean-out, or for this model an optional hydraulic drive positions.
Specs
| Additional Specs | |
|---|---|
| Minimum PTO HP Required | 60 hp |
| Dimensions & Weight | |
|---|---|
| Overall Length | 268.1 in (6.81 m) |
| Overall Width | 97 in (2.46 m) |
| Weight Hubs Only ( lbs) | 2670 lbs |
| Inside bed length (in. (m)) | 192 (4.48) |
| Inside Width of Bed (in. (m)) | 60.9 (1.55) |
| Inside Bed Depth, Top of Flare (in. (m)) | 22.6 (0.58) |
| Spreader Specs | |
|---|---|
| Capacity Heaped, Double Beater (cu. ft. (m³)) | 342 (9.68) |
| Capacity Heaped, single beater (cu. ft (m³)) | 278 (7.87) |
| Maximum Net Load (lbs. (kg)) | 13,000 (5897) |
| Mechanical Drive | 2 (plus 1 slow-speed option) |
| Number of Beater Paddles | 12 |
| Struck Level (cu. ft. (m³)) | 170 (4.81) |
| Make/Model | |
|---|---|
| Model | 185 |
| Type | Spreader |
| Product Dimensions & Weight | |
|---|---|
| Length | 268.10 in |
| Width | 97.00 in |
| Height | 62.80 in |
| Weight | 2670.00 lbs |
