New Holland T5.120 Tractor

Selected N H T5.120 D C
N H T5.120 D C

Product Description

New Holland T5 tractor (4).png

MEET THE T5.120 TRACTOR

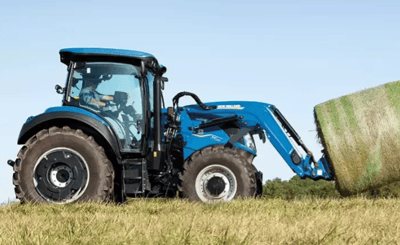

Choose from 24 x 24 Dual Command transmission paired with the FPT F5G 4-cylinder diesel or 16 x 16 Electro Command Semi Powershift transmission paired with FPT F5G turbo diesel. Optional Auto Shift or Creeper also available. The T5 models come standard with 4WD with the option of SuperSteer for added maneuverability. Fully compatible with New Holland's wide frame front loaders and front linkage, the T5.120 is best paired with the 740TL loader with a max lift height of 12.14 feet (3.7 m) and max lift capacity of 5,597 lbs. (2539 kg).

VISIONVIEW CAB

New Holland T5 VisionView Cab.png
The deluxe VisionView cab offers the ultimate operator experience with panoramic visibility from its arched front windshield, high-visibility roof panel, curved side windows, and extended rear window. It features a tilting and telescoping steering wheel, a dashboard instrument cluster, and controls that move together for improved visibility and control.

TRANSMISSION OPTIONS

New Holland T5 tractor.png
The Electro Command Semi-Powershift transmission gives you eight thumb-button powershifts without making a shift lever range change. Achieve top transport speeds of up to 25 mph. The Dual Command transmission is easy-to-use providing a hi-lo speed in each of the four gears within the three ranges, controlled by push buttons on the lever.

Specs

Engine
Displacement
207 cu in
Emissions Tier (EPA)
Tier 4B, ECOBlue Compact HI-eSCR + Light CEGR
Engine Model
FPT F5G
Gross HP
117 hp
Performance
Lift Capacity at 24" behind lift Point
5620-8084 lbs
PTO HP
100 hp
Transmission
Transmission
Power Shuttle
Transmission Range
24x24, 16x16
Make/Model
Model
T5.120
Type
Ag Tractor
Product Dimensions & Weight
Length
163.00 in
Width
85.00 in
Height
101.00 in
Weight
6500.00 lbs
