New Holland Workmaster 40 Tractor
New
New Holland Workmaster 40 Tractor
Manufacturers:
- 40 engine horsepower
- 34 gear or 32 HST PTO horsepower
- 3-range HST or 12F/12R SSS transmission
Product Description

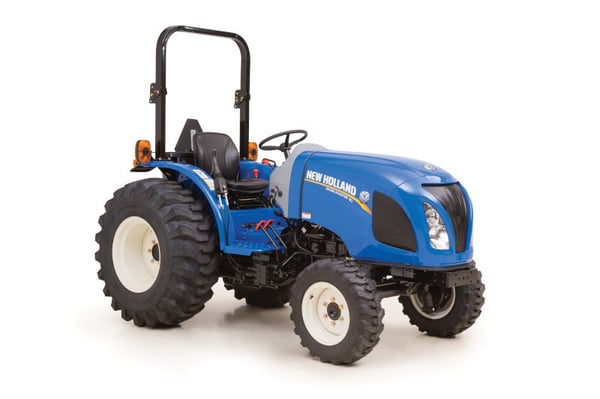

NEW HOLLAND WORKMASTER 40
With the highest horsepower of the compact Workmaster Series tractors, the Workmaster 40 offers just that 40 horsepower and up to 34 PTO horsepower with the 12 x 12 gear transmission. The 3-range hydrostatic transmission is also available with 32 PTO horsepower. This model features the turbocharged, large-displacement, three-cylinder engine with improved power and torque and quiet operation. These engines are more fuel efficient and feature a common rail, direct-injected, electronic fuel management system. A two-position, extendable drawbar comes standard. Telescopic stabilizers and fixed link ends make hookup easy for three-point-mounted implements. You can never have to many attachment options.
ENVIRONMENTALLY FRIENDLY
FUEL SAVING POWER
Specs
| Engine | |
|---|---|
| Aspiriation | Turbo |
| Displacement | 114.7 cu in |
| Emissions Tier (EPA) | Tier 4B |
| Gross HP | 40 hp |
| No. Of Cylinders | 3 |
| Performance | |
|---|---|
| Lift Capacity at 24" behind lift Point | 1433 lbs |
| PTO | 540 rpm |
| PTO HP | 32-34 hp |
| Front linkage lift capacity (24 in. (610 mm) in front of ball ends) (lbs. (kg)) | 1808 lbs |
| Dimensions & Weight | |
|---|---|
| Height | 87.7 in |
| Length | 121 in |
| Operating Weight | 3067 lbs |
| Wheel base | 67.5 in |
| Width | 66.5 in |
| Capacities | |
|---|---|
| Fuel Tank | 7.4 gal |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST), Gear Drive |
| Transmission Range | 12x12, 3-Range |
| Make/Model | |
|---|---|
| Model | Workmaster 40 |
| Type | Compact Tractor |
| Product Dimensions & Weight | |
|---|---|
| Length | 121.00 in |
| Width | 66.50 in |
| Height | 87.70 in |
| Weight | 3067.00 lbs |
Related Products
Model Inventory

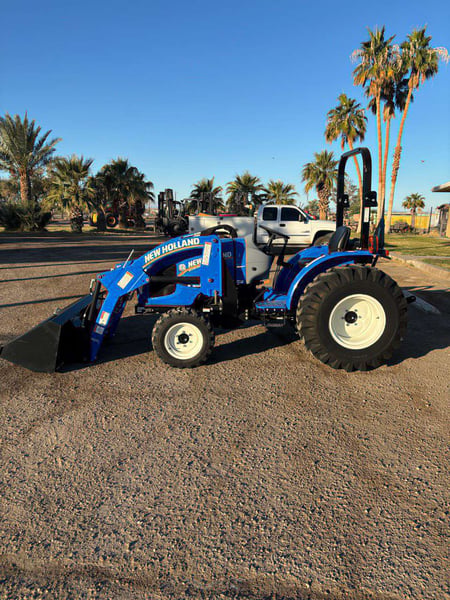

Stock #: 100678
Model: WM40
- Compact size; maximum versatility
- 40.0 Horsepower
- OEM Warranty until 09-11-2027

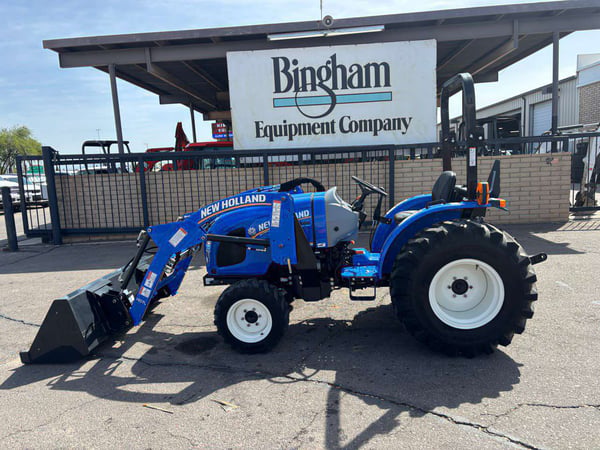

Stock #: 100677
