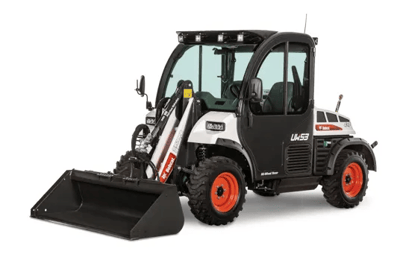

Bobcat UW53 Toolcat Utility Work Machine

Bobcat U W53

Product Description

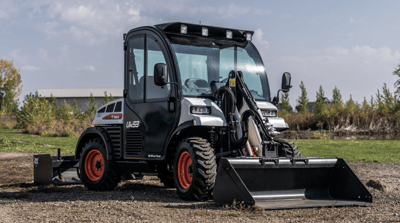

Bobcat UW53 bucket.png

MEET THE UW53 TOOLCAT

The UW53 Toolcat is tough yet cozy on the inside, with a redesigned dash and comfort features that include 360-degree adjustable vents, an integrated 5-inch display and improved visibility to front-end attachments. Unlike the UW56 Toolcat, this model features a standard 3-point hitch for Category 1 implements and the UW53's PTO powers rear-mounted implements such as mowers, augers, tiller and more. Four-wheel independent suspension offers a great ride and allows you to travel at higher speeds to get the job done faster.

ENHANCEMENTS INSIDE AND OUT

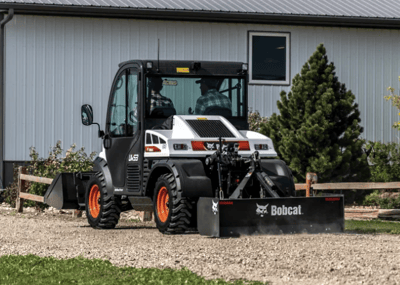

Bobcat UW53 toolcat.png
These leading do-it-all machines can now do even more thanks to enhancements inside and out, including: an upgraded fuel system, a redesigned cab and lights, a more intuitive driver response system and more durable corrosion protection. With standard all-wheel steering and traction control, the UW53 is also incredibly maneuverable and responsive.

UNMATCHED VERSATILITY

Bobcat UW53 versatility.png
Mow in the morning, remove downed trees in the afternoon and dig postholes in the evening. You can leverage your Toolcat utility work machine investment in different ways all year long by pairing it with 45+ attachments.

THREE-POINT HITCH

The 3-point hitch is compatible with all Category 1 implements and lifts as much as 1,775 lbs. You’ll have the ability to operate implements typically reserved for compact tractors. Operators can get more work done with the ability to complete two tasks in one pass by operating a 3-point implement at the same time you operate an attachment at the front of the machine. Operation is simple with a depth indicator, mechanical float, work mode, and superior visibility.

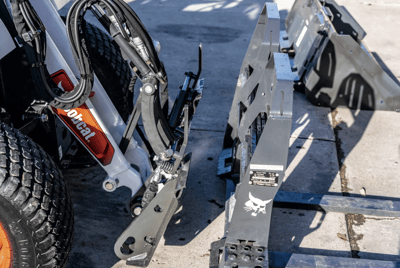

Bobcat UW53 three point hitch.png



Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS
Engine
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Fuel Type
Diesel
Gross HP
61 hp
Turbocharged Engine
Yes
Performance
Rated Operating Capacity (ISO)
1500 lb
Travel Speed
8 mph
Total Vehicle Rated Capacity
4200 lb
Machine Rated Capacity
2200 lb
Driveline
4WD
Dimensions & Weight
Height
81 in
Length
180.8 in
Operating Weight
5710 lb
Width
62 in
Capacities
Fuel Tank
20 gal
Hydraulic System
Auxiliary Std Flow
18.8 gal/min
Auxiliary High Flow
27.9 gal/min
Auxiliary Pressure
3000 psi
Transmission
Transmission
Hydrostatic (HST)
Make/Model
Model
UW53
Type
Toolcat
