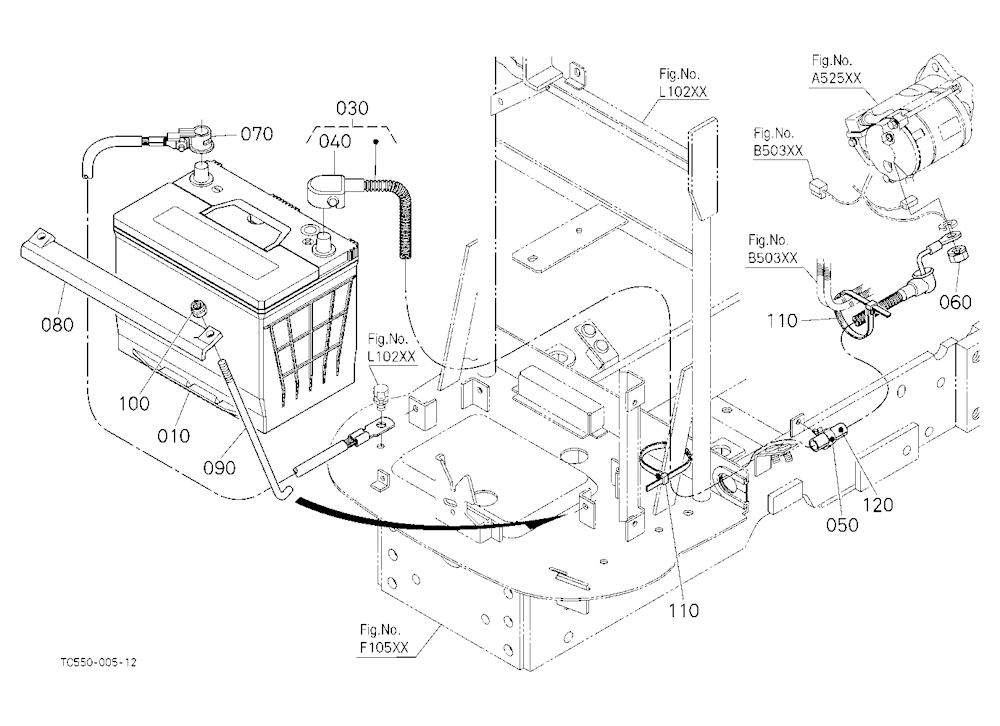

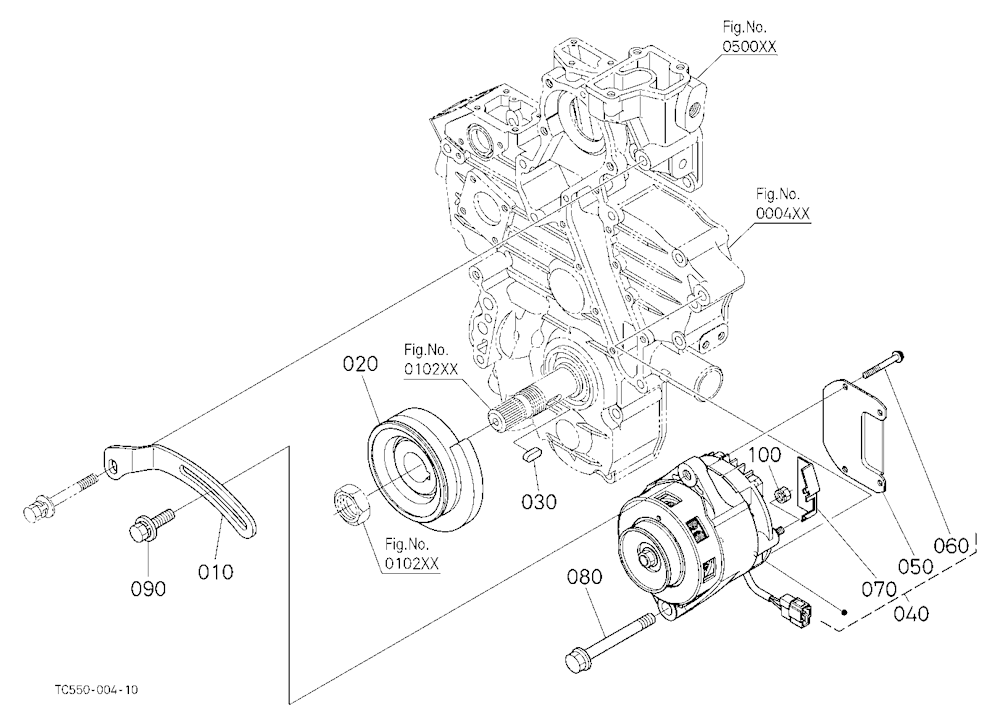

![Battery [New]](https://imagedelivery.net/mhuCRcTxCdbPtYk1I1TKMA/roc%2Fbinghamequipment%2Fd311d4e716253131d70968d022942832/kubota-l2501dt-electrical-system-battery-%5Bnew%5D-parts-diagram.png/1000x1000)
-
![Battery [Old]](https://imagedelivery.net/mhuCRcTxCdbPtYk1I1TKMA/roc%2Fbinghamequipment%2F23e18fa5be52827cc8257562662f6a2b/kubota-l2501dt-electrical-system-battery-%5Bold%5D-parts-diagram.png/1000x1000)
-

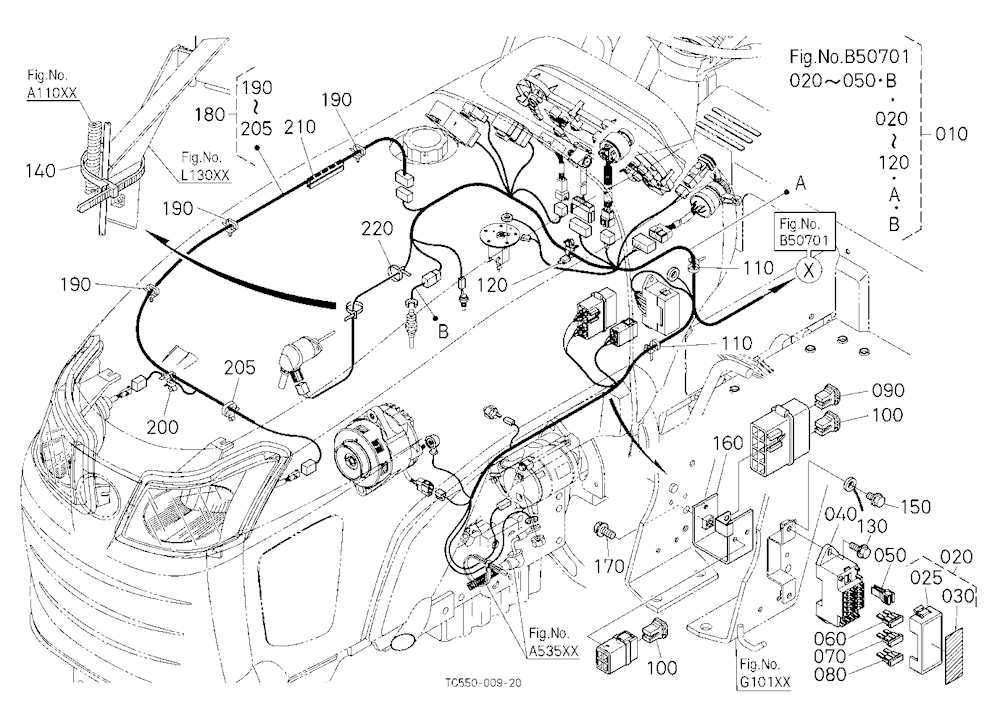

![Electrical Wiring (Front) [New]](https://imagedelivery.net/mhuCRcTxCdbPtYk1I1TKMA/roc%2Fbinghamequipment%2F3dec9ff16d542f7b1f7d5de78fd541d7/kubota-l2501dt-electrical-system-electrical-wiring-%28front%29-%5Bnew%5D-parts-diagram.png/1000x1000)
-
![Electrical Wiring (Front) [Old]](https://imagedelivery.net/mhuCRcTxCdbPtYk1I1TKMA/roc%2Fbinghamequipment%2Fa9a7efb69a355c997ee75b0bc88b4b79/kubota-l2501dt-electrical-system-electrical-wiring-%28front%29-%5Bold%5D-parts-diagram.png/1000x1000)
-
![Electrical Wiring (Rear) [New]](https://imagedelivery.net/mhuCRcTxCdbPtYk1I1TKMA/roc%2Fbinghamequipment%2Fdabc04cba4ab1578452dfa4e16aff242/kubota-l2501dt-electrical-system-electrical-wiring-%28rear%29-%5Bnew%5D-parts-diagram.png/1000x1000)
-

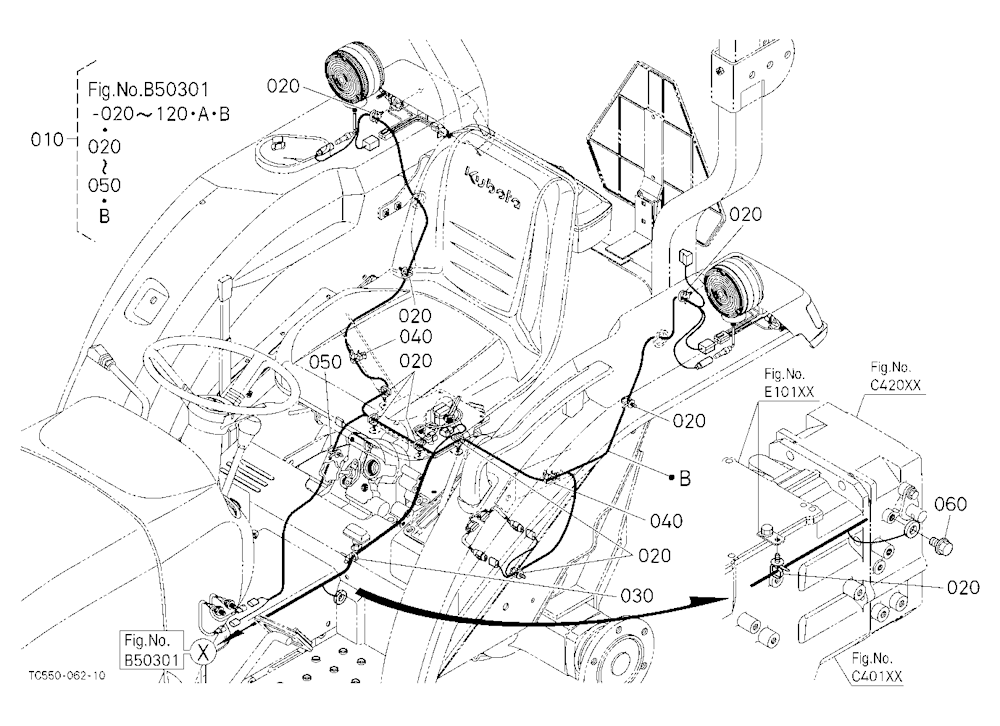

![Electrical Wiring (Rear) [Old]](https://imagedelivery.net/mhuCRcTxCdbPtYk1I1TKMA/roc%2Fbinghamequipment%2Fe3dbd6693e74ea5a5897ad425f13690c/kubota-l2501dt-electrical-system-electrical-wiring-%28rear%29-%5Bold%5D-parts-diagram.png/1000x1000)
-
-

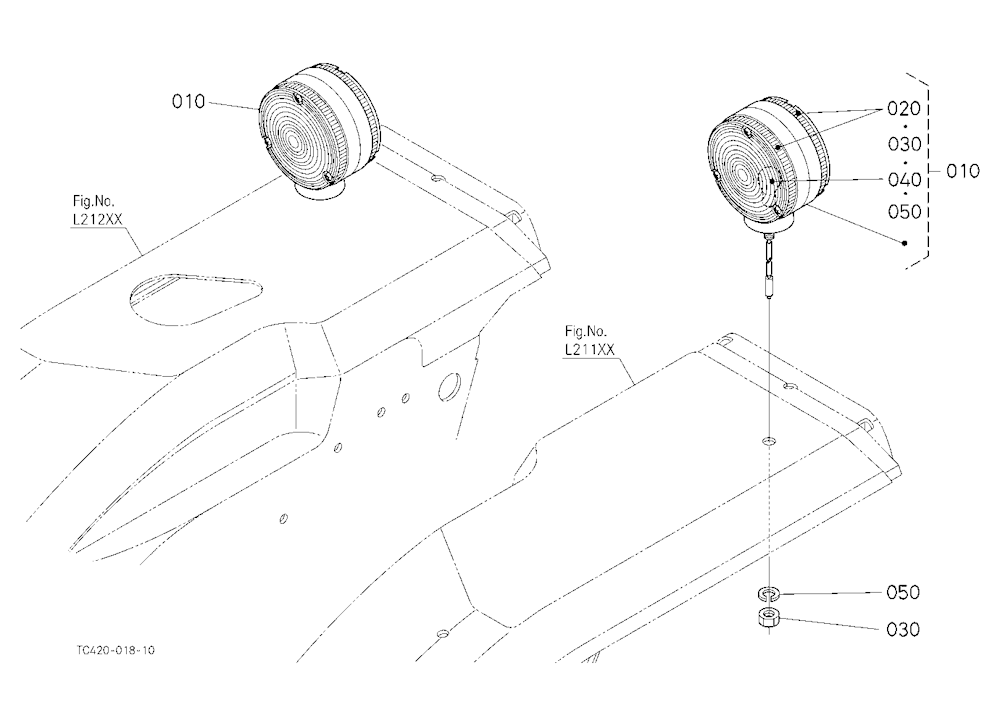

![Head Light [New]](https://imagedelivery.net/mhuCRcTxCdbPtYk1I1TKMA/roc%2Fbinghamequipment%2Fd23dd360327bd0862aecb1b8333866c3/kubota-l2501dt-electrical-system-head-light-%5Bnew%5D-parts-diagram.png/1000x1000)
-

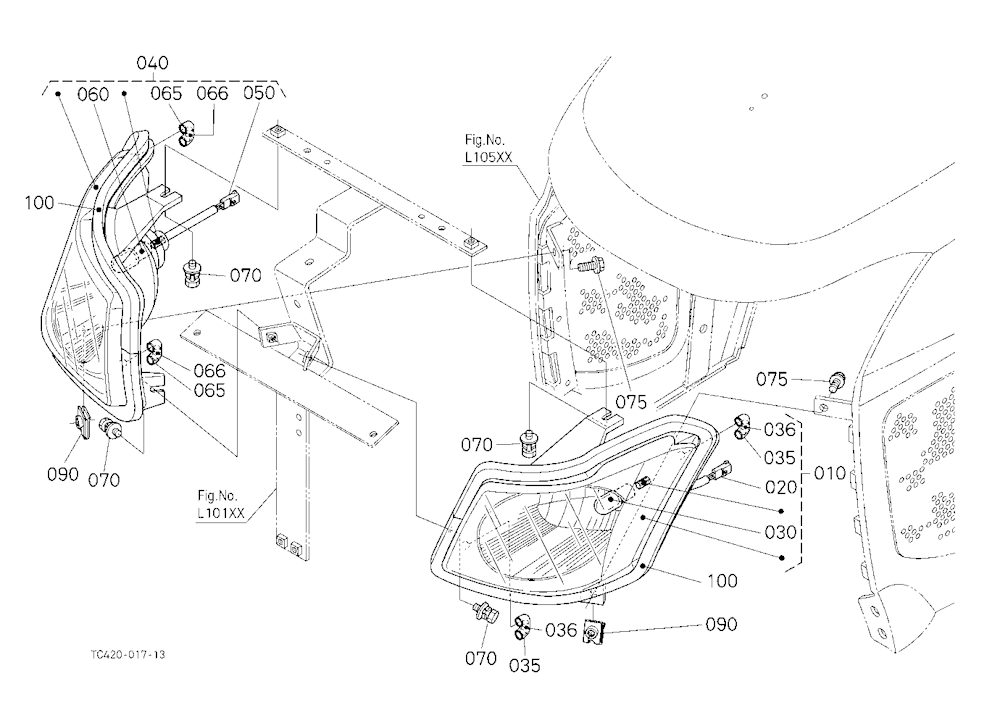

![Head Light [Old]](https://imagedelivery.net/mhuCRcTxCdbPtYk1I1TKMA/roc%2Fbinghamequipment%2Fd23dd360327bd0862aecb1b8333866c3/kubota-l2501dt-electrical-system-head-light-%5Bold%5D-parts-diagram.png/1000x1000)
-

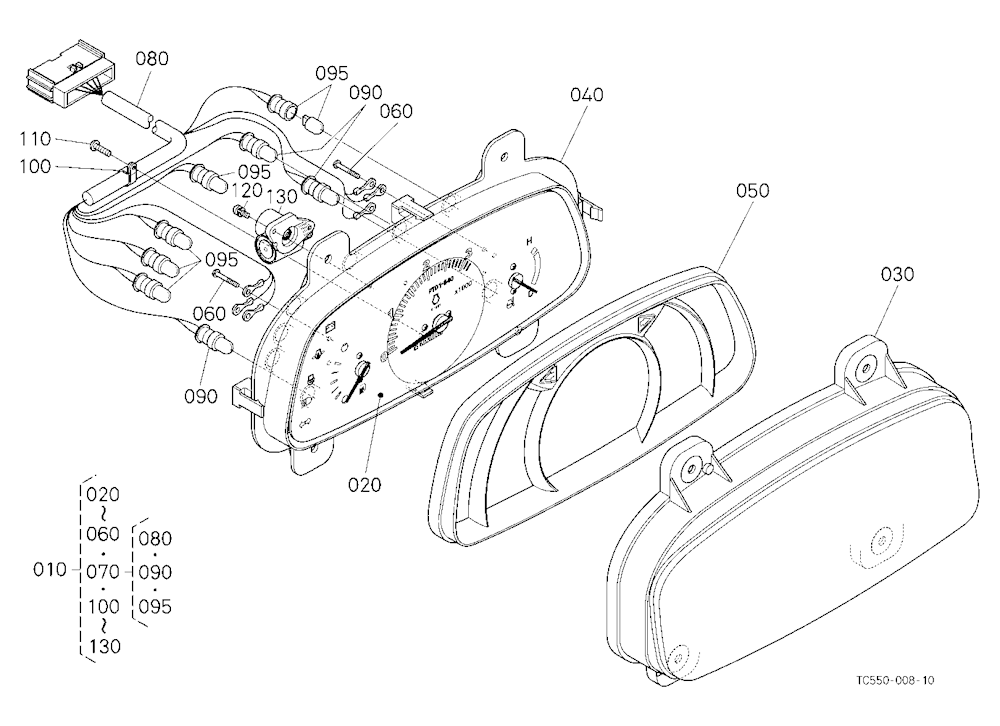

![Panel [Component Parts]](https://imagedelivery.net/mhuCRcTxCdbPtYk1I1TKMA/roc%2Fbinghamequipment%2F4fca8106566d0f909e48a92a0df320cf/kubota-l2501dt-electrical-system-panel-%5Bcomponent-parts%5D-parts-diagram.png/1000x1000)
-

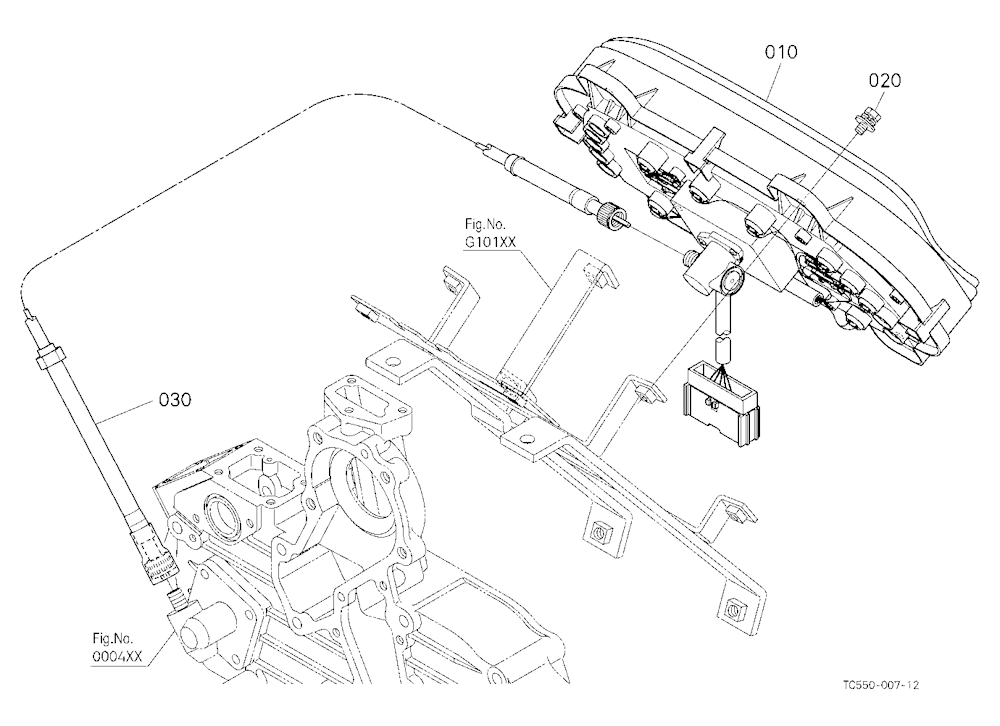

![Panel [New]](https://imagedelivery.net/mhuCRcTxCdbPtYk1I1TKMA/roc%2Fbinghamequipment%2F551c22cb25f4226dd017db0740a195ca/kubota-l2501dt-electrical-system-panel-%5Bnew%5D-parts-diagram.png/1000x1000)
-
![Panel [Old]](https://imagedelivery.net/mhuCRcTxCdbPtYk1I1TKMA/roc%2Fbinghamequipment%2Ffa3295a9af6eed1ceb0d683ec7a6be9c/kubota-l2501dt-electrical-system-panel-%5Bold%5D-parts-diagram.png/1000x1000)
-

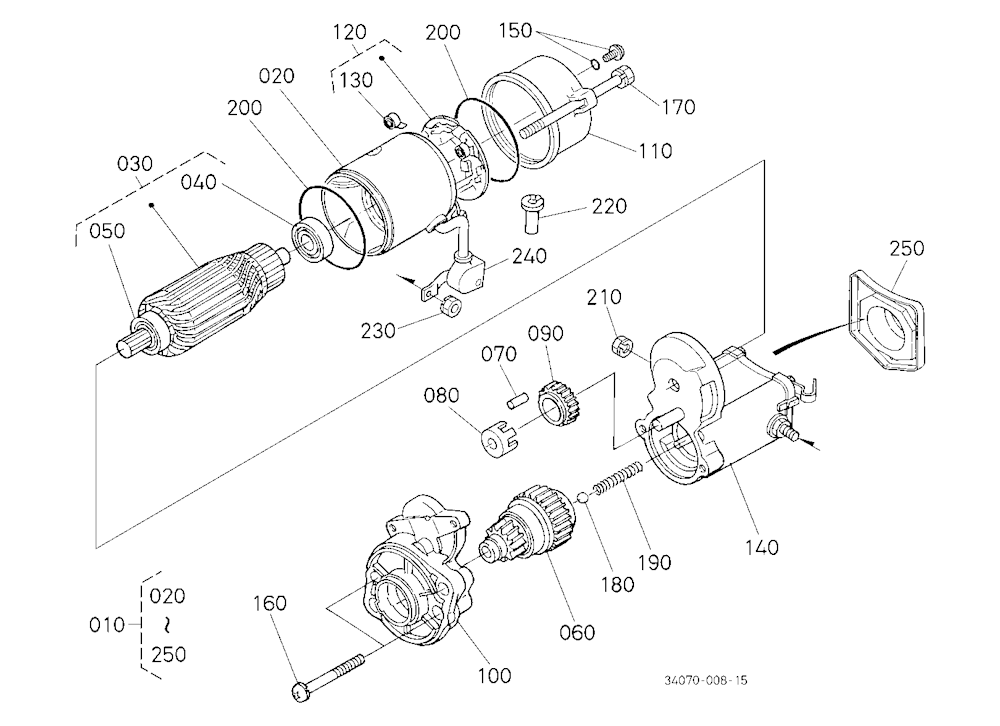

![Starter [Component Parts] [New](Not For Reman Unit](https://imagedelivery.net/mhuCRcTxCdbPtYk1I1TKMA/roc%2Fbinghamequipment%2F23e18fa5be52827cc8257562662f6a2b/kubota-l2501dt-electrical-system-starter-%5Bcomponent-parts%5D-%5Bnew%5D%28not-for-reman-unit-parts-diagram.png/1000x1000)
-
![Starter [Component Parts] [Old](Not For Reman Unit](https://imagedelivery.net/mhuCRcTxCdbPtYk1I1TKMA/roc%2Fbinghamequipment%2F23e18fa5be52827cc8257562662f6a2b/kubota-l2501dt-electrical-system-starter-%5Bcomponent-parts%5D-%5Bold%5D%28not-for-reman-unit-parts-diagram.png/1000x1000)
-

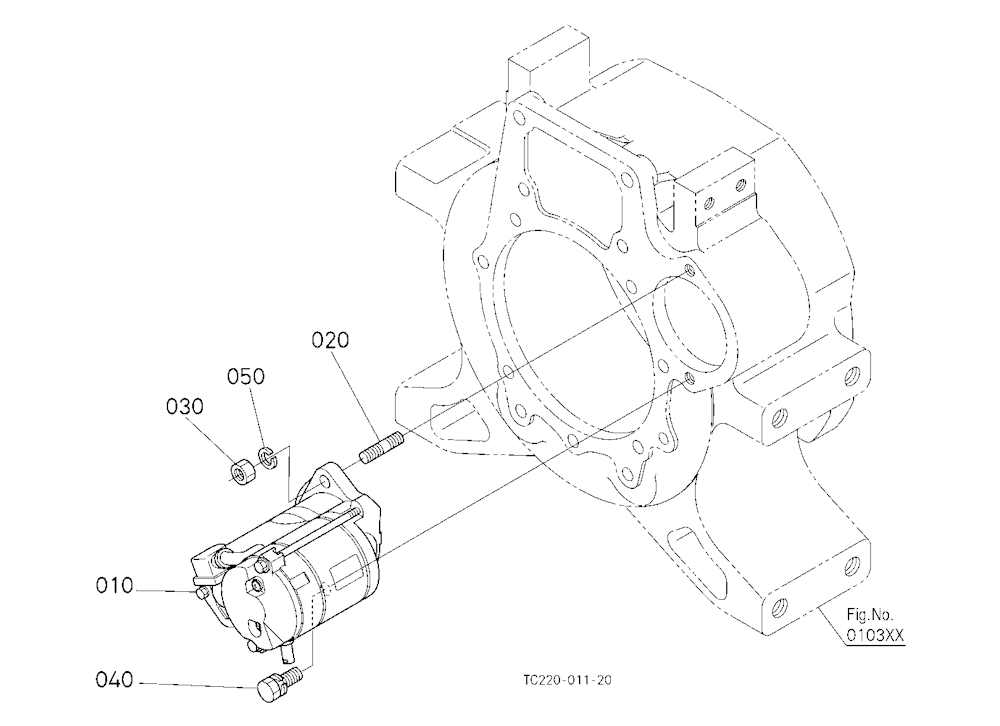

![Starter [New]](https://imagedelivery.net/mhuCRcTxCdbPtYk1I1TKMA/roc%2Fbinghamequipment%2Fef0e8b283a611e4ef23c3190c631dc8b/kubota-l2501dt-electrical-system-starter-%5Bnew%5D-parts-diagram.png/1000x1000)
-
![Starter [Old]](https://imagedelivery.net/mhuCRcTxCdbPtYk1I1TKMA/roc%2Fbinghamequipment%2Fef0e8b283a611e4ef23c3190c631dc8b/kubota-l2501dt-electrical-system-starter-%5Bold%5D-parts-diagram.png/1000x1000)
-
-

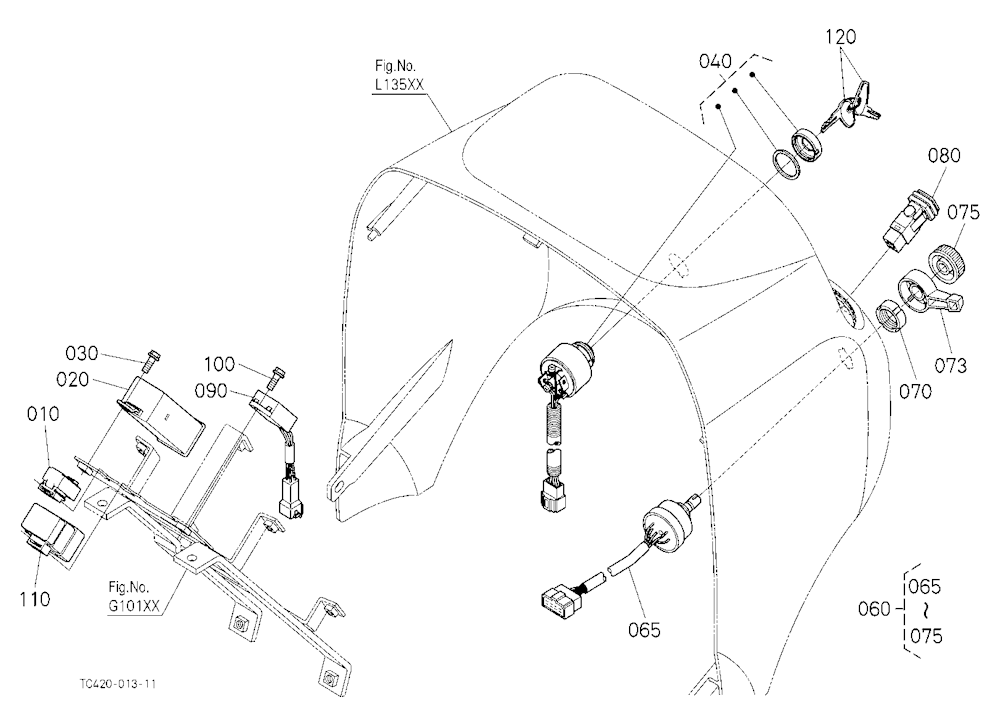

![Switch 2/Sensor [New]](https://imagedelivery.net/mhuCRcTxCdbPtYk1I1TKMA/roc%2Fbinghamequipment%2Fb0b187cc909ecf3c0bc1a6ee4056f72c/kubota-l2501dt-electrical-system-switch-2-sensor-%5Bnew%5D-parts-diagram.png/1000x1000)
-

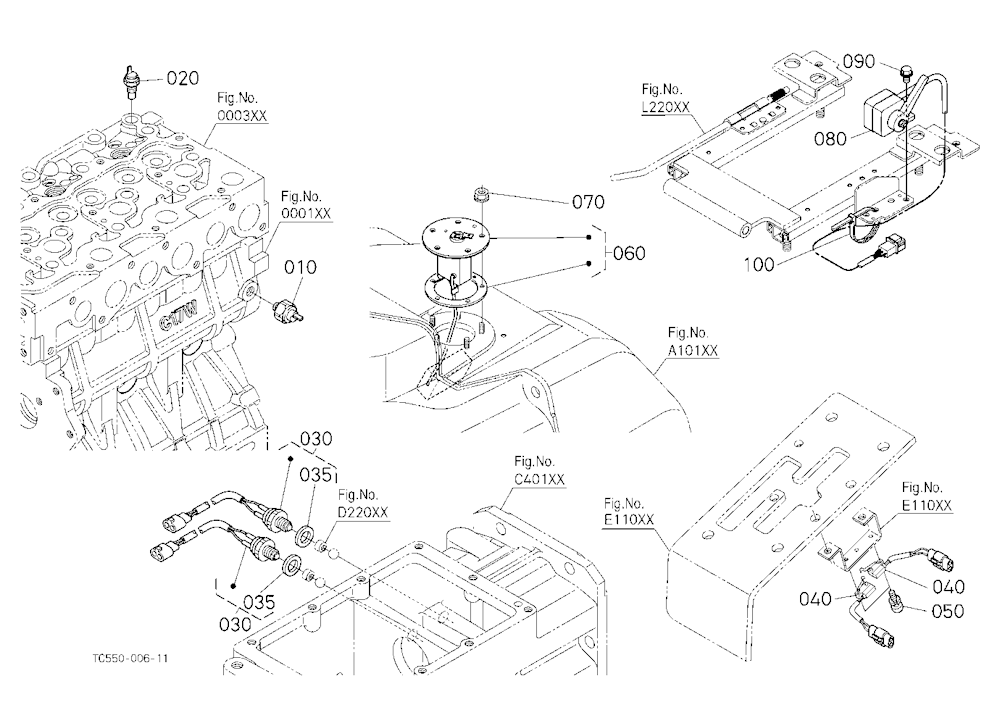

![Switch 2/Sensor [Old]](https://imagedelivery.net/mhuCRcTxCdbPtYk1I1TKMA/roc%2Fbinghamequipment%2F74a6171ca877c03107edaa2a27546f7f/kubota-l2501dt-electrical-system-switch-2-sensor-%5Bold%5D-parts-diagram.png/1000x1000)
-

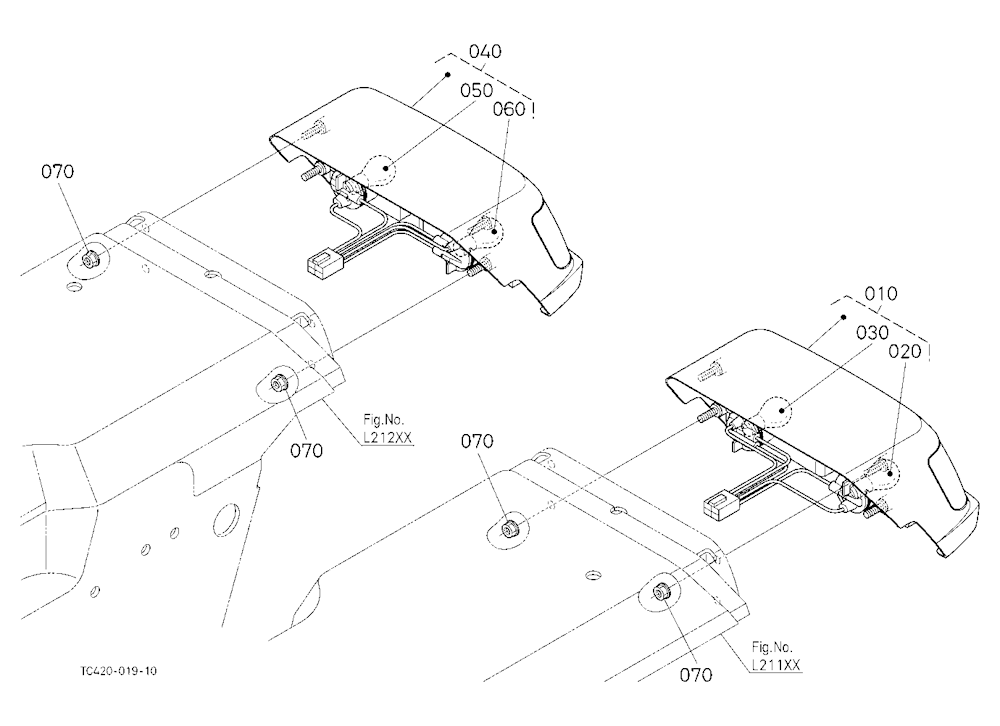

![Tail Lamp [New]](https://imagedelivery.net/mhuCRcTxCdbPtYk1I1TKMA/roc%2Fbinghamequipment%2F1421ca0f1f3a206f030b0861915ac26a/kubota-l2501dt-electrical-system-tail-lamp-%5Bnew%5D-parts-diagram.png/1000x1000)
-
![Tail Lamp [Old]](https://imagedelivery.net/mhuCRcTxCdbPtYk1I1TKMA/roc%2Fbinghamequipment%2F1421ca0f1f3a206f030b0861915ac26a/kubota-l2501dt-electrical-system-tail-lamp-%5Bold%5D-parts-diagram.png/1000x1000)
