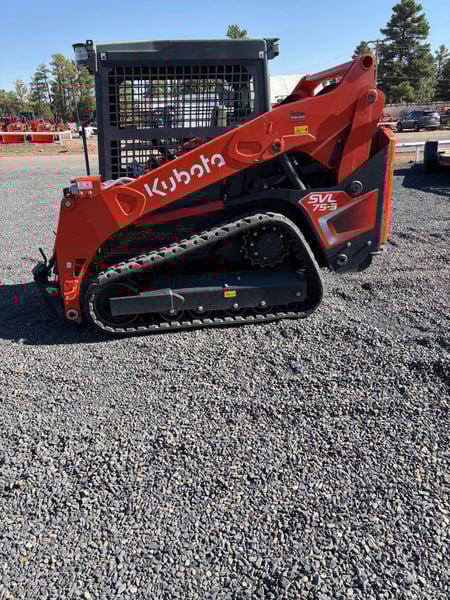

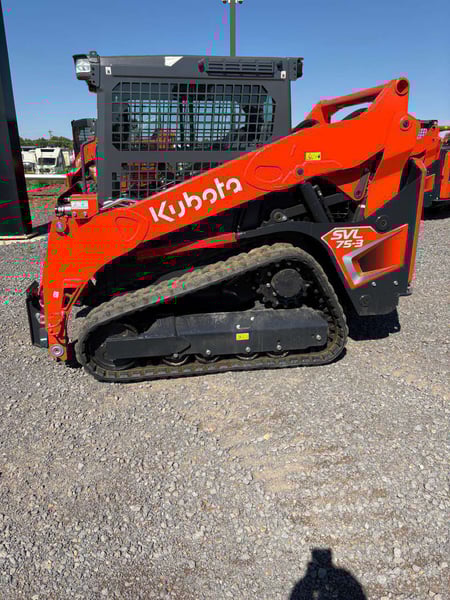

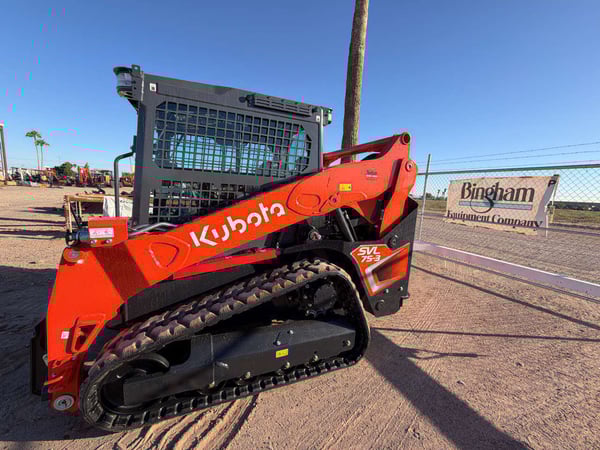

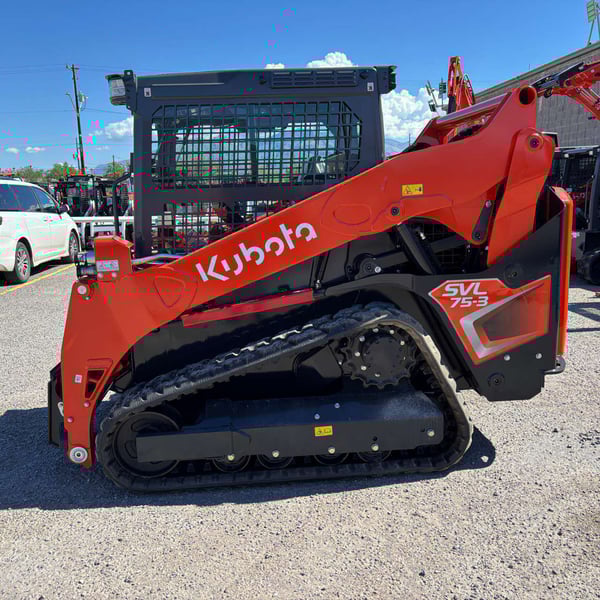

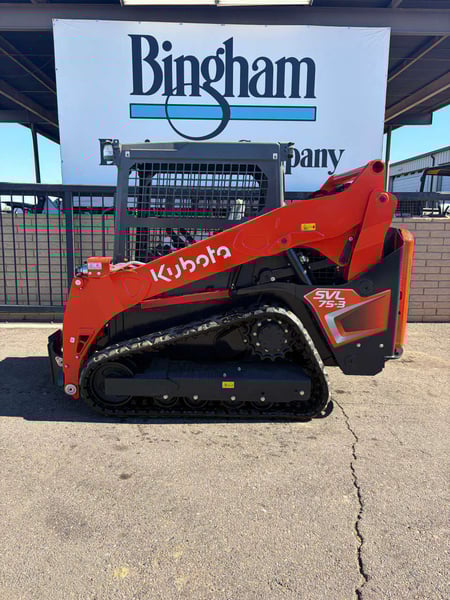

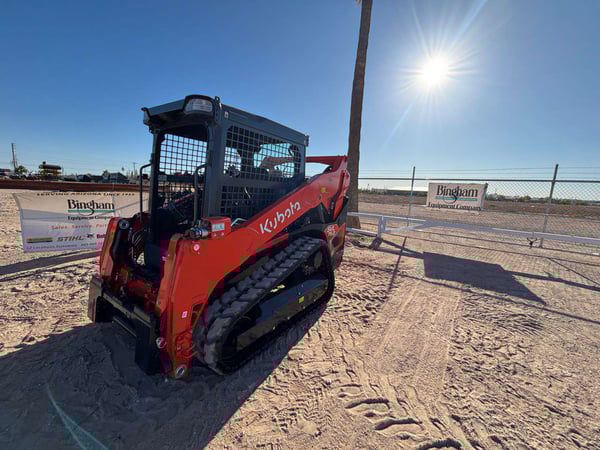

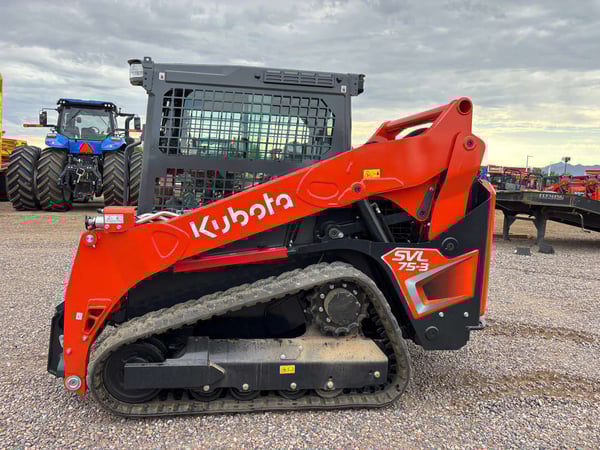

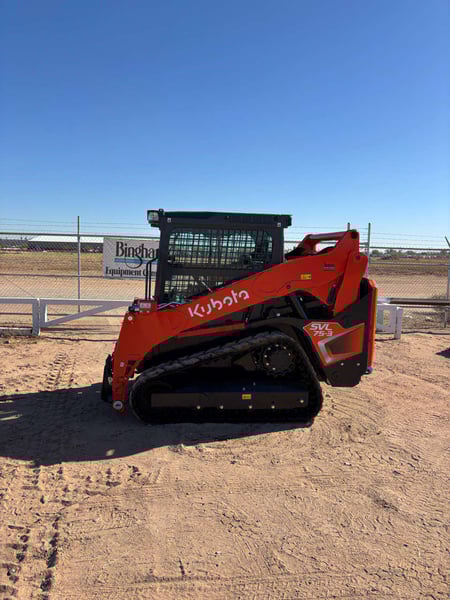

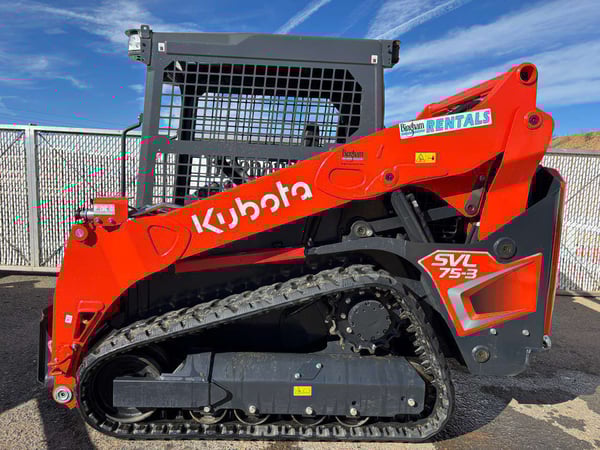

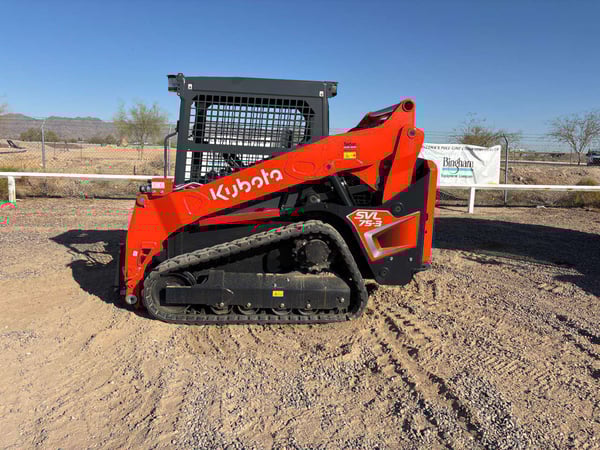

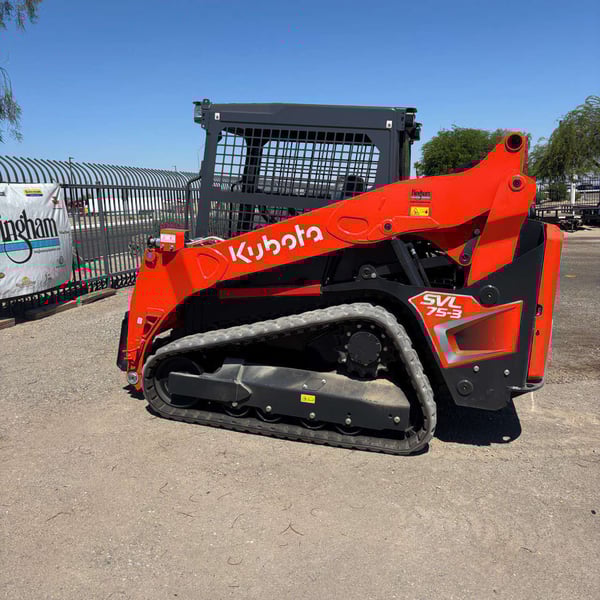

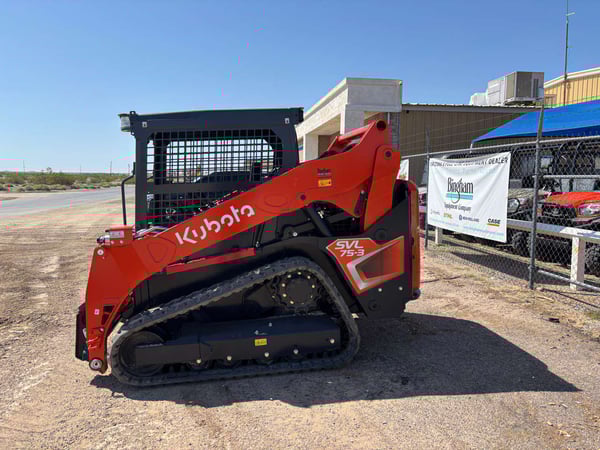

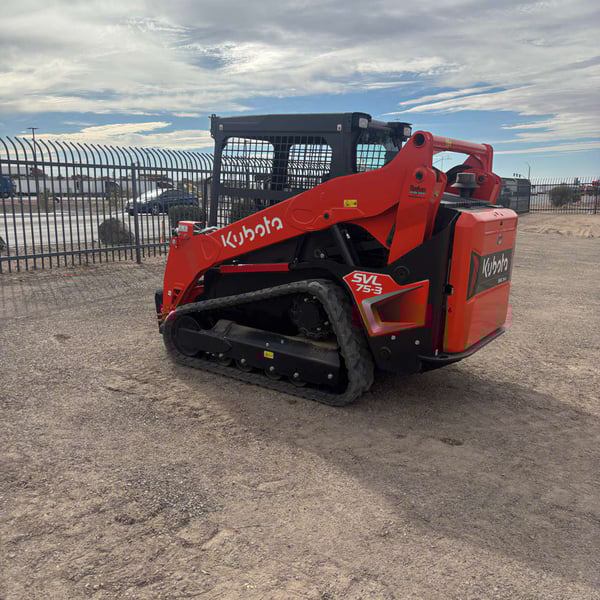

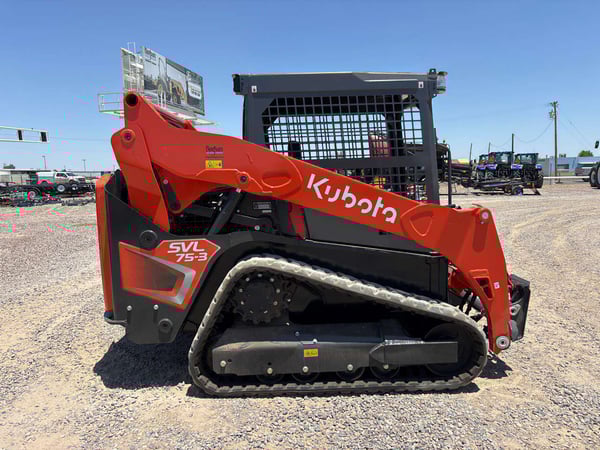

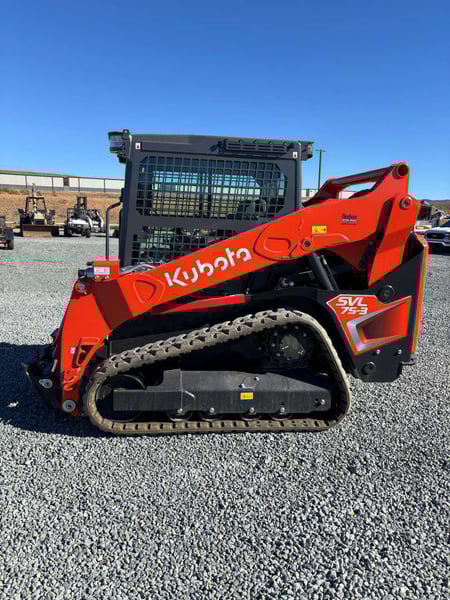

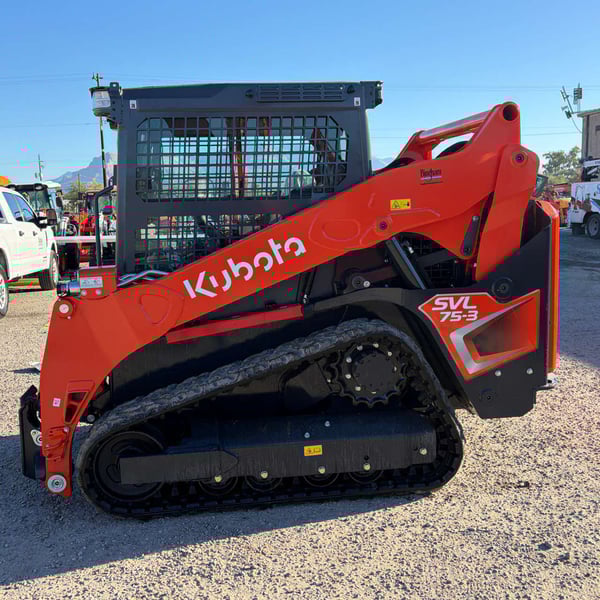

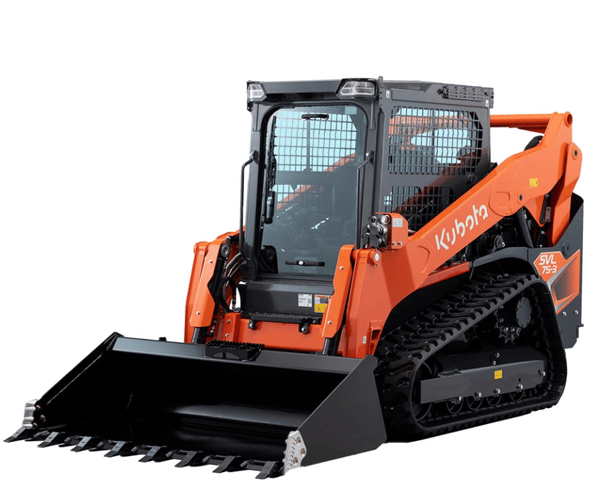

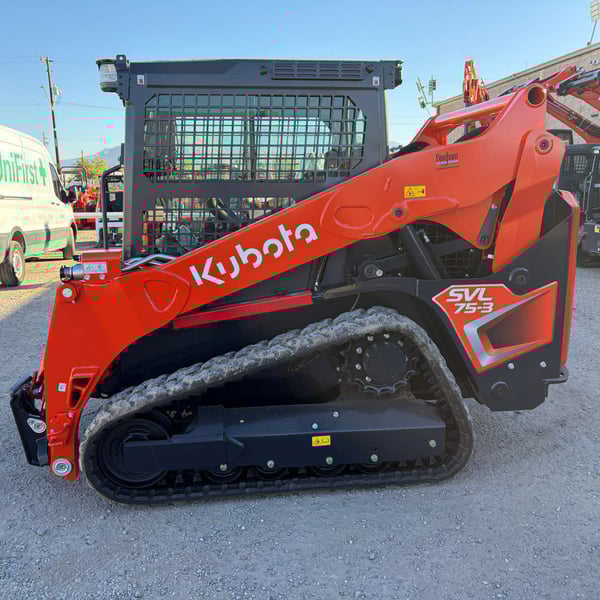

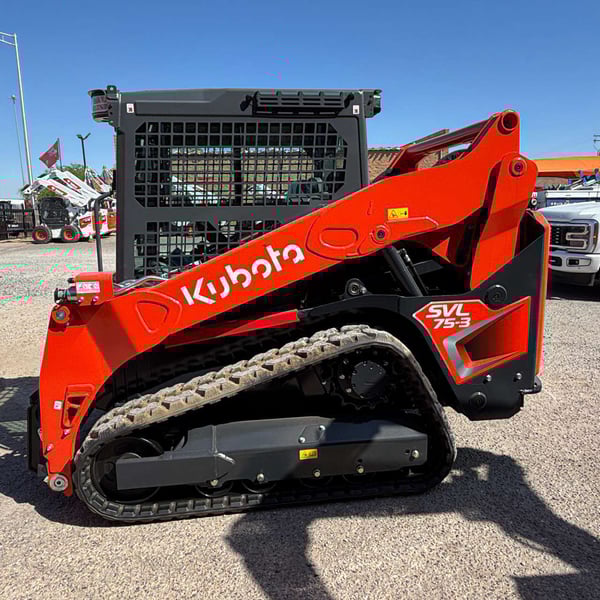

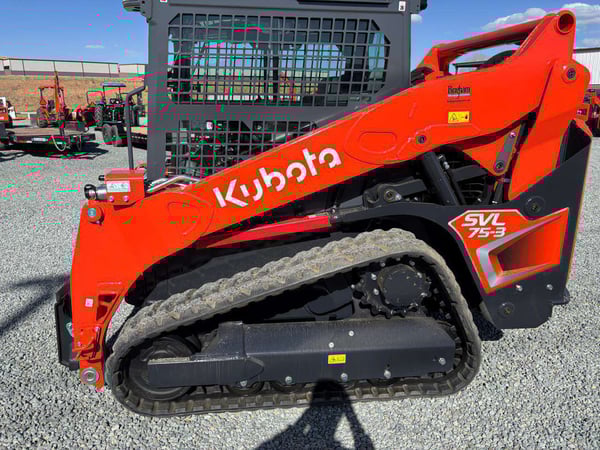

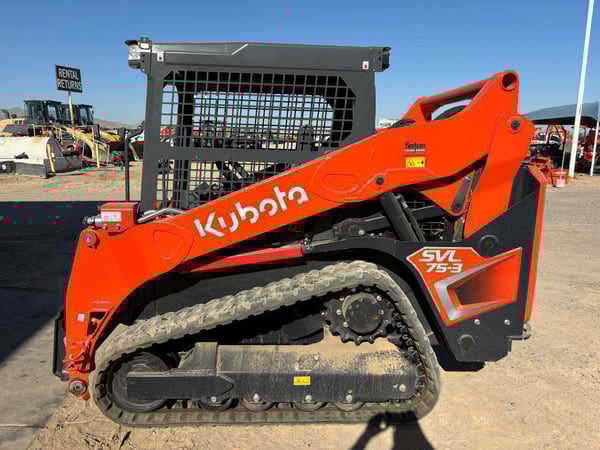

Kubota SVL75-3 Track Loader

S V L75 3

Product Description

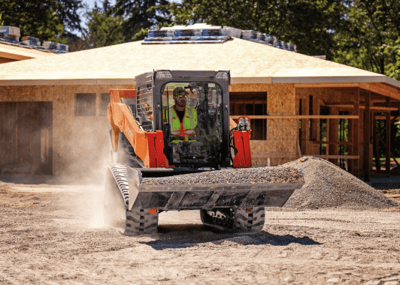

Kubota SVL75-3 track loader.png

MEET THE SVL75-3 TRACK LOADER

When you’re looking for comfort, practicality, and versatility, you can’t beat the experience that the new Kubota SVL75-3 gives you. The SVL75-3 replaces the popular SVL75-2 with a wide range of performance, comfort and productivity features. Still rated at 74.3 horsepower, but with a higher peak torque, the SVL75-3 is suited for whatever you throw in its way – digging, and moving materials, grading, landscaping, or hardscaping. Available as an open or closed cab, the SVL75-3’s side-screen to side-screen width of 36 inches means you’ll have plenty of room to stretch out, and a comfortable operator is a productive one.

STANDARD REARVIEW CAMERA

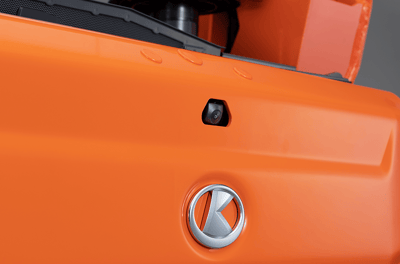

Kubota SVL75-3 camera.png
The SVL75-3 track loader features a new rearview camera integrated into the rear bonnet, providing a 176° range of rearward visibility. This enhanced view is displayed on a new 7-inch touch screen, improving operator safety and convenience. The seamless integration ensures better maneuverability and situational awareness.

TWO-SPEED TRAVEL

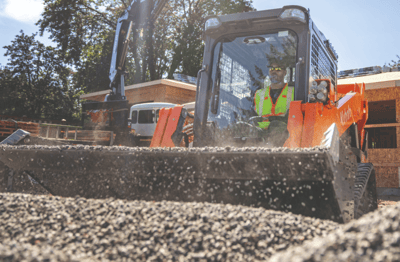

Kubota SVL75-3 two speed travel.png
Standard on the Kubota SVL75-3 is two-speed travel. Move from 5 mph to over 8 mph at the flick of a switch. Two-speed travel allows operators to switch between low speed for precise control and high speed for quick movement across job sites. This reduces travel time and minimizes the need to load and unload the machine from trailers.

ULTIMATE VERSATILITY

The Kubota SVL75-3 offers remarkable versatility, being compatible with a wide range of attachments to tackle various tasks efficiently. It can be equipped with a hydraulic auger for drilling, a grapple bucket for material handling, and a trencher for digging precise trenches. This adaptability makes the SVL75-3 an ideal choice for construction, landscaping, and agricultural applications, enhancing productivity across different projects.

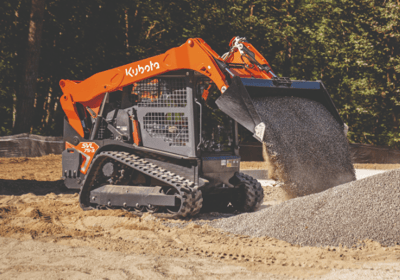

Kubota SVL75-3 bucket.png



Specs

Additional Specs
Operator Station
Open Cab, Enclosed Cab
Engine
Aspiriation
Turbocharged
Bore X Stroke
3.7 x 4.72 in
Displacement
203.3 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
V3307-CR-TE4
Gross HP
74.3 hp
No. Of Cylinders
4
Performance
Bucket Breakout Force
6191 lbf
Ground Pressure
4.7-5.8 psi
Lift Arm Path
Vertical
Travel Speed
High: 7.1 mph, Low: 4.7 mph
Tipping Load
6570 lbs
Dump Angle @ Max Height
40 degree
Dimensions & Weight
Ground Clearance
11.7 in
Height to Bucket Hinge Pin
122.7 in
Length of Track on Ground
56.5 in
Operating Weight
9039-9315 lbs
Reach @ Maximum Height
41.7 in
Track Width
12.6 in (standard), 15 in (wide)
Turning Radius
107.1 in
Capacities
Hydraulic Tank
9.2 gal
Fuel Tank
24.6 gal
Hydraulic System
Auxiliary Std Flow
17.4-29.3 gpm
Make/Model
Model
SVL75-3
Type
Track Loader
Product Dimensions & Weight
Length
142.10 in
Width
69.10 in
Height
81.80 in
Weight
9420.00 lbs
